STMM-113-02-G-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

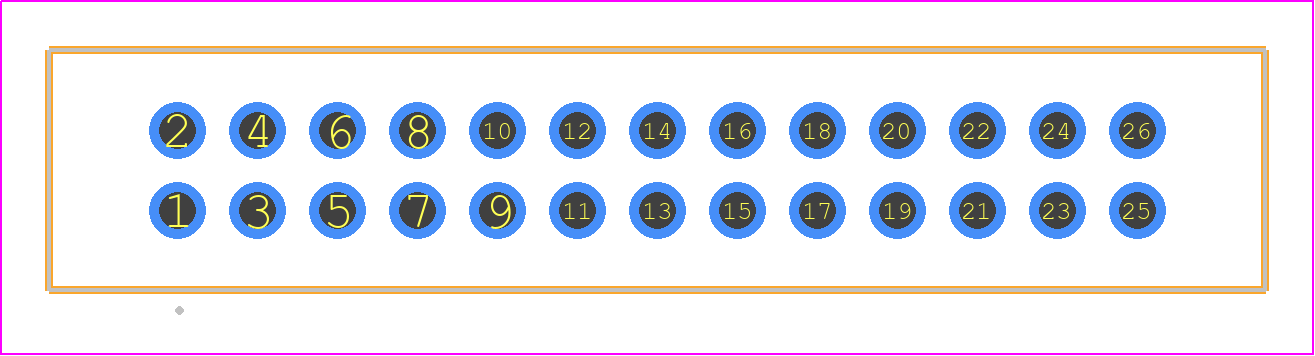

PCB Footprints

STMM-113-02-G-D - SAMTEC PCB footprint - Other - Other - STMM-113-XX-YY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STMM-113-02-G-D
Part Number STMM-113-02-G-D
Manufacturer SAMTEC
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - STMM-113-XX-YY-D
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

STMM-113-02-G-D Details

Manufacturer Part Number:
STMM-113-02-G-D
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
GOLD (20) OVER NICKEL (50)
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Rated Current (Signal):
3 A
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
26

STMM-113-02-G-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the STMM-113-02-G-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the STMM-113-02-G-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the STMM-113-02-G-D connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's performance at higher temperatures to ensure reliable operation.
The STMM-113-02-G-D connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher ingress protection rating (IP67 or higher) for such applications.
The recommended mating cycle for the STMM-113-02-G-D connector is 500-1000 cycles according to Samtec's application notes. Exceeding this cycle count may affect the connector's reliability.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

STMM-113-02-G-D Overview

Use the download button to access the STMM-113-02-G-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like STMM-, or try a keyword search, such as Headers and Edge Type Connectors
