STMPS2151MTR - STMicroelectronics

Description: STMICROELECTRONICS - STMPS2151MTR - Power Load Distribution Switch, High Side, 2 Outputs, 28V, 60A, 0.0135ohm, TSSOP-14

Download STMPS2151MTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

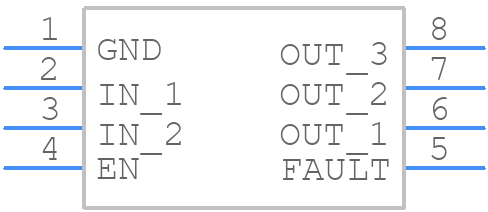

STMPS2151MTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STMPS2151MTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - so-8/
click to zoom
3D Models
STMPS2151MTR - STMicroelectronics - 3D model - Small Outline Packages - so-8/
click to zoom

STMPS2151MTR Details

  • Manufacturer Part Number:

    STMPS2151MTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.3

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

STMPS2151MTR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and ensure that the PCB is designed to minimize thermal resistance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, such as using a heat sink or thermal pad, and ensuring good airflow around the device. Additionally, consider using a thermally conductive interface material (TCIM) to improve heat transfer between the device and the heat sink or thermal pad.
  • The recommended soldering conditions for the STMPS2151MTR are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350-370°C. It's essential to follow these conditions to prevent damage to the device.
  • To handle ESD protection for the STMPS2151MTR, it's recommended to use ESD-sensitive handling procedures, such as using an anti-static wrist strap or mat, and storing the device in an anti-static bag or container. Additionally, consider using ESD protection devices, such as TVS diodes or ESD arrays, in the circuit design.
  • The recommended input and output capacitors for the STMPS2151MTR are X7R or X5R ceramic capacitors with a voltage rating of 10-50V and a capacitance value of 1-10uF. The capacitor selection should be based on the specific application requirements and the device's operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STMPS2151MTR Overview

Use the download button to access the STMPS2151MTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STMPS, or try a keyword search, such as Power Management Circuits

About STMicroelectronics
