STMPS2242MTR - STMicroelectronics

Description: Power Switch ICs - Power Distribution Enhanced dual ch Power Switches

Download STMPS2242MTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

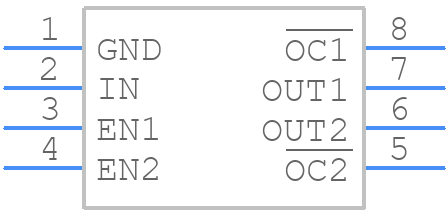

STMPS2242MTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STMPS2242MTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-08-1
click to zoom
3D Models
STMPS2242MTR - STMicroelectronics - 3D model - Small Outline Packages - SO-08-1
click to zoom

STMPS2242MTR Details

  • Manufacturer Part Number:

    STMPS2242MTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.3

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

STMPS2242MTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the STMPS2242MTR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance.
  • To ensure stability, it's essential to follow the recommended capacitor values and types, and to place them close to the IC. Additionally, the input voltage should be well-regulated, and the output should be decoupled with a capacitor to prevent oscillations.
  • The STMPS2242MTR can handle input voltages up to 42V, but it's recommended to keep the input voltage below 36V for optimal performance and reliability.
  • The output voltage of the STMPS2242MTR can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (1.25V), and R1 and R2 are the resistors in the feedback network.
  • The STMPS2242MTR can deliver up to 2A of output current, but it's recommended to keep the output current below 1.5A for optimal performance and reliability.
