Technical Content
Part Image

STMPS2242TTR - STMicroelectronics

Description: Enhanced dual-channel power switches

Download STMPS2242TTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

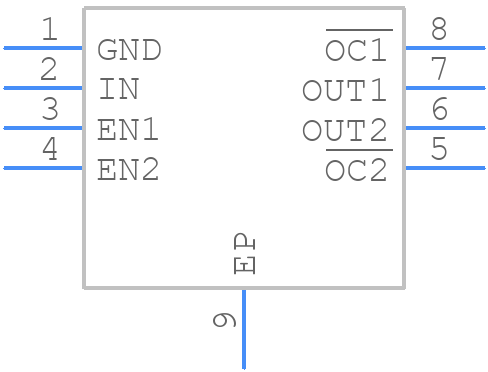

Symbol
STMPS2242TTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STMPS2242TTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - MSOP8
click to zoom
3D Models
STMPS2242TTR - STMicroelectronics - 3D model - Small Outline Packages - MSOP8
click to zoom

STMPS2242TTR Details

  • Manufacturer Part Number:

    STMPS2242TTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    ROHS COMPLIANT, MSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.3

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

STMPS2242TTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) close to the VCC pin.
  • Use a thermocouple or a thermistor with a high accuracy rating. Ensure good thermal contact between the sensor and the device under test. Calibrate the sensor before use. Consider using a temperature calibration circuit or a microcontroller with a built-in temperature sensor.
  • The STMPS2242TTR is a low-power device, and its maximum current handling is limited to 1mA. Exceeding this limit may cause damage to the device or affect its accuracy.
  • The STMPS2242TTR is rated for operation up to 125°C. However, its accuracy and reliability may degrade above 85°C. Consider using a thermally protected package or a heat sink to maintain a safe operating temperature.
  • Use a 3-wire SPI interface (SCK, MOSI, MISO) to communicate with the STMPS2242TTR. Ensure the microcontroller's clock frequency is within the recommended range (e.g., 100 kHz to 1 MHz). Use a level shifter if the microcontroller's voltage is different from the STMPS2242TTR's supply voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STMPS2242TTR Overview

Use the download button to access the STMPS2242TTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STMPS, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
