Part Image

STMPS2252MTR - STMicroelectronics

Description: Power Switch ICs - Power Distribution 100m Ohm High-Side Mosfet Dual Switch

Download STMPS2252MTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

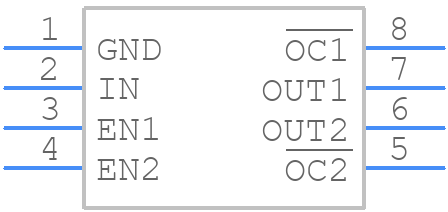

Symbol
STMPS2252MTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STMPS2252MTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO--8
click to zoom
3D Models
STMPS2252MTR - STMicroelectronics - 3D model - Small Outline Packages - SO--8
click to zoom

STMPS2252MTR Details

  • Manufacturer Part Number:

    STMPS2252MTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.3

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

STMPS2252MTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the STMPS2252MTR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is essential to use the recommended output capacitor value and type, and to ensure that the output capacitor is placed close to the IC. Additionally, the input voltage should be within the recommended range, and the input capacitor should be of sufficient value to filter out noise.
  • The maximum ambient temperature range for the STMPS2252MTR is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the STMPS2252MTR is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the reliability of the final product.
  • To troubleshoot issues with the STMPS2252MTR, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are of the correct value and type, and that the PCB layout is correct. Check for any signs of overheating, and ensure that the device is operated within the recommended specifications.
