STMPS2262MTR - STMicroelectronics

Description: Enhanced dual channel power switches

Download STMPS2262MTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

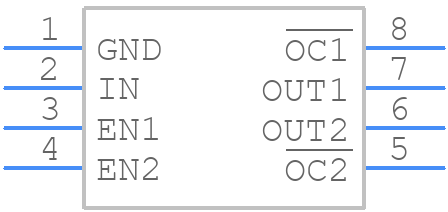

STMPS2262MTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STMPS2262MTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ...SO-8 mechanical data888
click to zoom
3D Models
STMPS2262MTR - STMicroelectronics - 3D model - Small Outline Packages - ...SO-8 mechanical data888
click to zoom

STMPS2262MTR Details

  • Manufacturer Part Number:

    STMPS2262MTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

STMPS2262MTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2663, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The STMPS2262MTR has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB.
  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 25V. The capacitor should be placed as close as possible to the VIN pin of the device to minimize noise and ensure stable operation.
  • The STMPS2262MTR is rated for operation up to 150°C, but the device's performance and reliability may be affected at high temperatures. It is recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.
  • The STMPS2262MTR has a power-good output (PG) that indicates when the output voltage is within regulation. The device should be powered up and down slowly (typically 10ms to 100ms) to prevent voltage overshoots and ensure proper operation.
