STNRG011 - STMicroelectronics

Description: Digital combo multi-mode PFC and time-shift LLC resonant controller

Download STNRG011 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

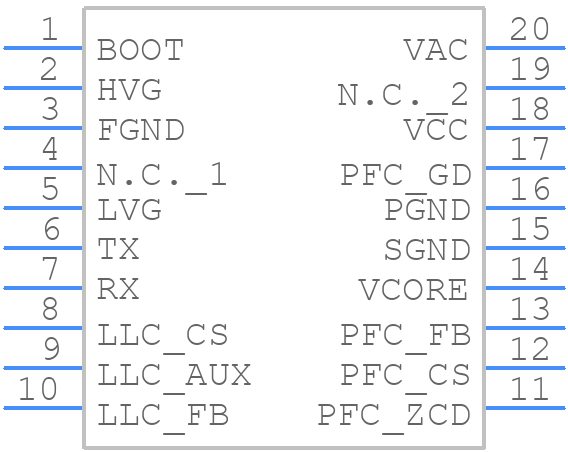

Symbol
STNRG011 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STNRG011 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-20*-*-*
click to zoom
3D Models
STNRG011 - STMicroelectronics - 3D model - Small Outline Packages - SO-20*-*-*
click to zoom

STNRG011 Details

  • Manufacturer Part Number:

    STNRG011

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    19 V

  • Input Voltage-Min:

    9.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    19 V

  • Supply Voltage-Min (Vsup):

    9.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

STNRG011 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4901, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The selection of the inductor depends on the output voltage, output current, and switching frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help designers choose the right inductor for their specific application.
  • The STNRG011 can operate in ambient temperatures up to 105°C, but the junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
  • Yes, the STNRG011 is AEC-Q100 qualified, which makes it suitable for automotive applications. Additionally, it's manufactured using a high-reliability process, making it suitable for high-reliability applications such as industrial, medical, and aerospace.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4901, which covers common issues and their solutions. Additionally, designers can use simulation tools such as SPICE models and simulation software to analyze and debug their design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STNRG011 Overview

Use the download button to access the STNRG011 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STNRG, or try a keyword search, such as Switching Regulator or Controllers
