STNRG011TR - STMicroelectronics

Description: Digital combo multi-mode PFC and time-shift LLC resonant controller

Download STNRG011TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

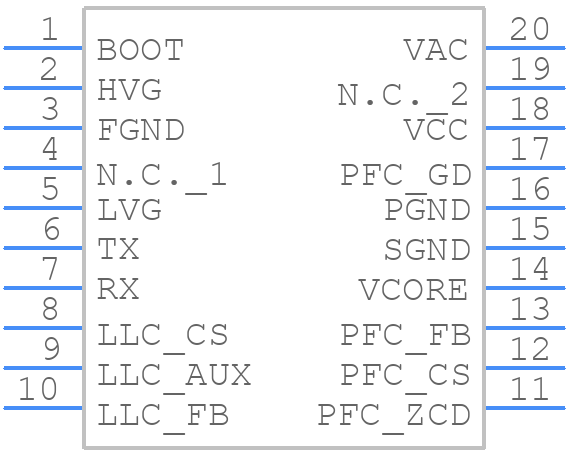

STNRG011TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STNRG011TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - . SO20 package mechanical data
click to zoom
3D Models
STNRG011TR - STMicroelectronics - 3D model - Small Outline Packages - . SO20 package mechanical data
click to zoom

STNRG011TR Details

  • Manufacturer Part Number:

    STNRG011TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    19 V

  • Input Voltage-Min:

    9.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    19 V

  • Supply Voltage-Min (Vsup):

    9.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

STNRG011TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor has a low ESR (Equivalent Series Resistance). Also, avoid using ceramic capacitors with high ESL (Equivalent Series Inductance).
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the IC.
  • Power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. Use the efficiency curve from the datasheet to determine the efficiency at your specific operating point.
  • While STNRG011TR is rated for operation up to 125°C, it's essential to consider the derating curves in the datasheet to ensure reliable operation at high temperatures. Also, ensure proper thermal management and heat sinking.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STNRG011TR Overview

Use the download button to access the STNRG011TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STNRG, or try a keyword search, such as Switching Regulator or Controllers
