STNRGPF01 - STMicroelectronics

Description:  Interleaved boost PFC  Up to 3 interleaved channels  CCM, fixed frequency  Average current control, cycle-by-cycle  Inrush current control  Burst mode support  Overcurrent and thermal protection  Soft start-up

Download STNRGPF01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

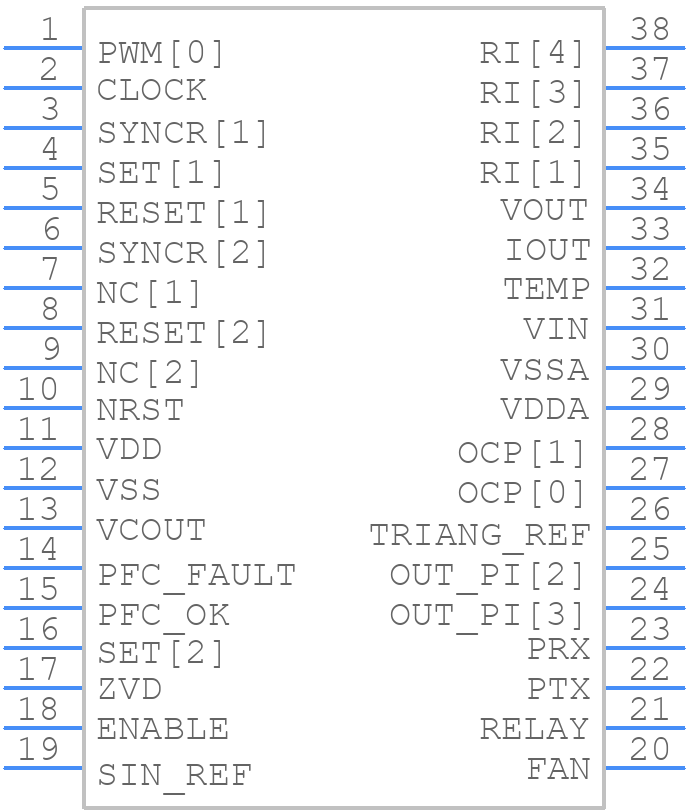

STNRGPF01 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STNRGPF01 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP38
click to zoom
3D Models
STNRGPF01 - STMicroelectronics - 3D model - Small Outline Packages - TSSOP38
click to zoom

STNRGPF01 Details

  • Manufacturer Part Number:

    STNRGPF01

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-38

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-02-23

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    HAS LOW LEVEL AND HIGH LEVEL O/P CURRENT AS 7.75 MILLI AMP AND 3 MILLI AMP

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G38

  • Length:

    9.7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    34 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

STNRGPF01 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4967, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor values depend on the input voltage, output voltage, and switching frequency. A general guideline is to use a minimum of 10uF ceramic capacitor with a voltage rating of at least 1.5 times the input voltage. However, it's recommended to consult the application note AN4967 and perform simulations to determine the optimal capacitor values for your specific design.
  • The STNRGPF01 is rated for operation up to 105°C ambient temperature, but it's recommended to derate the device's performance and consider thermal management strategies to ensure reliable operation above 85°C ambient temperature.
  • The STNRGPF01 has built-in OVP and UVLO features, but they can be adjusted or customized using external resistors and capacitors. Consult the datasheet and application note AN4967 for guidance on implementing OVP and UVLO in your design.
  • The output capacitor value and type depend on the output voltage, output current, and ripple requirements. A general guideline is to use a minimum of 22uF ceramic capacitor with a voltage rating of at least 1.5 times the output voltage. However, it's recommended to consult the application note AN4967 and perform simulations to determine the optimal output capacitor value and type for your specific design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STNRGPF01 Overview

Use the download button to access the STNRGPF01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STNRG, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
