STNRGPF02TR - STMicroelectronics

Description: 2-channel interleaved PFC driver with embedded digital inrush current limiter function

Download STNRGPF02TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

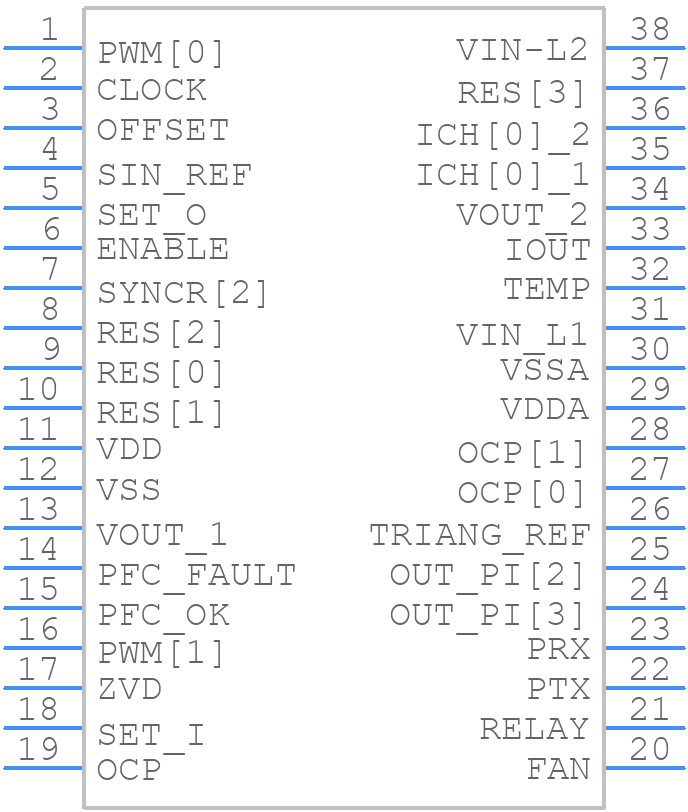

STNRGPF02TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STNRGPF02TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP38
click to zoom
3D Models
STNRGPF02TR - STMicroelectronics - 3D model - Small Outline Packages - TSSOP38
click to zoom

STNRGPF02TR Details

  • Manufacturer Part Number:

    STNRGPF02TR

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-38

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G38

  • Length:

    9.7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    34 mA

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

STNRGPF02TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4969, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor values depend on the input voltage, output voltage, and output current. A general guideline is to use a minimum of 10uF ceramic capacitor with a voltage rating of at least 1.5 times the input voltage. However, it's recommended to consult the application note AN4969 and perform simulations to determine the optimal capacitor values for your specific design.
  • While the datasheet specifies an operating temperature range of -40°C to 150°C, the maximum ambient temperature for reliable operation depends on the specific application and cooling conditions. As a general guideline, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation and minimize thermal stress.
  • To ensure EMC compliance, follow the guidelines in the application note AN4969, which includes recommendations for PCB layout, component selection, and shielding. Additionally, perform EMC testing and simulation to ensure your design meets the required standards.
  • The recommended output capacitor value and type depend on the output voltage, output current, and desired ripple voltage. A general guideline is to use a minimum of 10uF ceramic capacitor with a voltage rating of at least 1.5 times the output voltage. However, it's recommended to consult the application note AN4969 and perform simulations to determine the optimal capacitor values for your specific design.
