STO68N65DM6 - STMicroelectronics

Description: N-channel 650 V, 53 mOhm typ., 55 A MDmesh DM6 Power MOSFET in a TO-LL package

Download STO68N65DM6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

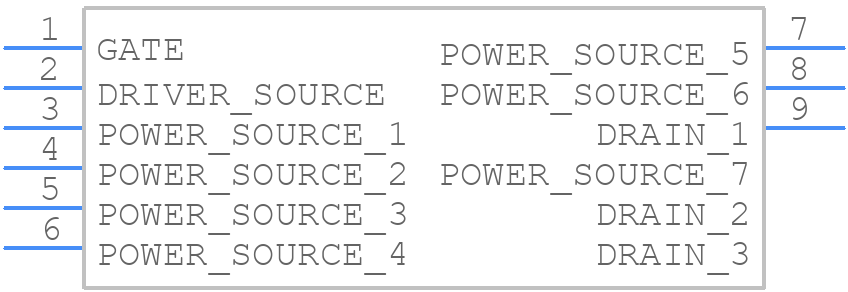

Symbol
STO68N65DM6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STO68N65DM6 - STMicroelectronics PCB footprint - Other - Other - TO-LL type A2_2023
click to zoom
3D Models
STO68N65DM6 - STMicroelectronics - 3D model - Other - TO-LL type A2_2023
click to zoom

STO68N65DM6 Details

  • Manufacturer Part Number:

    STO68N65DM6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    930 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    55 A

  • Drain-source On Resistance-Max:

    0.065 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    1.5 pF

  • JESD-30 Code:

    R-PSSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    240 W

  • Pulsed Drain Current-Max (IDM):

    172 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STO68N65DM6 Frequently Asked Questions (FAQs)

  • The maximum safe operating area (SOA) for the STO68N65DM6 is not explicitly stated in the datasheet. However, according to STMicroelectronics' application notes, the device can operate safely within the boundaries of Vds = 65V, Id = 10A, and Pd = 100W. It's essential to ensure that the device operates within these limits to prevent damage or premature failure.
  • The junction-to-case thermal resistance (Rthjc) for the STO68N65DM6 is not directly provided in the datasheet. However, you can calculate it using the following formula: Rthjc = (Tj - Tc) / Pd, where Tj is the junction temperature, Tc is the case temperature, and Pd is the power dissipation. You can find the thermal resistance values for the package in the datasheet, and then use the formula to calculate Rthjc.
  • The recommended gate resistor value for the STO68N65DM6 is not explicitly stated in the datasheet. However, a general guideline is to use a gate resistor value between 10Ω to 100Ω to ensure proper switching and to prevent oscillations. The optimal value depends on the specific application, PCB layout, and switching frequency.
  • Yes, the STO68N65DM6 is suitable for high-frequency switching applications. It has a low gate charge (Qg) and a low output capacitance (Coss), making it suitable for high-frequency switching up to several hundred kHz. However, it's essential to ensure that the device is properly driven, and the PCB layout is optimized to minimize parasitic inductances and capacitances.
  • The body diode of the STO68N65DM6 is an inherent part of the MOSFET structure. It's essential to consider the body diode's characteristics, such as its reverse recovery time and voltage, when designing your application. You may need to add an external diode or take other measures to ensure proper operation and prevent unwanted current flow.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STO68N65DM6 Overview

Use the download button to access the STO68N65DM6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STO68, or try a keyword search, such as Power Field-Effect Transistors
