STP08DP05B1 - STMicroelectronics

Description: IC LED DRIVER LINEAR 100MA 16DIP

Download STP08DP05B1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

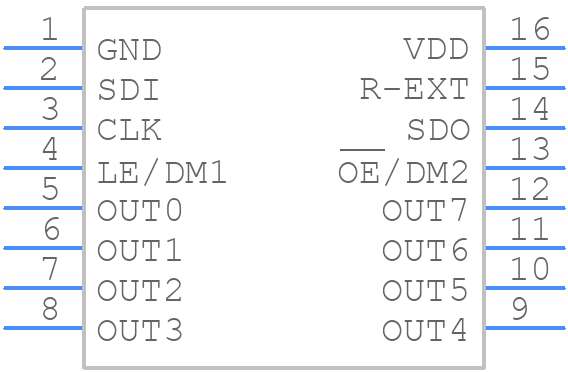

Symbol
STP08DP05B1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STP08DP05B1 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16
click to zoom
3D Models
STP08DP05B1 - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP-16
click to zoom

STP08DP05B1 Details

  • Manufacturer Part Number:

    STP08DP05B1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.250 INCH, LEAD FREE, PLASTIC, DIP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    20 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.1 mm

  • Supply Current-Max:

    13.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

  • fmax-Min:

    30 MHz

STP08DP05B1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2349, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device within its specified temperature range.
  • Although the datasheet specifies the output voltage range, it's essential to note that the maximum allowable voltage on the output pins is limited to the supply voltage (VCC) + 0.3V to prevent damage to the device.
  • To prevent electrostatic discharge (ESD) damage, follow proper handling and assembly procedures, such as using ESD-safe materials, grounding straps, and ionizers. Additionally, consider implementing ESD protection devices, such as TVS diodes, in the circuit design.
  • STMicroelectronics provides a recommended soldering profile in the package datasheet, which includes guidelines for peak temperature, soldering time, and temperature ramp rates to ensure reliable assembly and minimize the risk of damage.
