STP100N10F7 - STMicroelectronics

Description: N-channel 100 V, 6.8 mΩ typ., 80 A STripFET F7 Power MOSFETs in D2PAK, DPAK, TO-220FP, I2PAK and TO-220 packages

Download STP100N10F7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

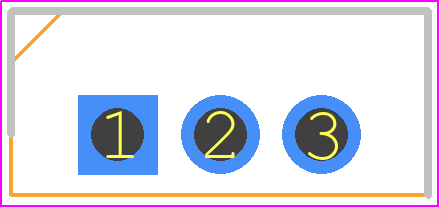

STP100N10F7 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - 3-Pin TO-220
click to zoom
3D Models
STP100N10F7 - STMicroelectronics  - 3D model - Transistor Outline, Vertical - 3-Pin TO-220
click to zoom

STP100N10F7 Details

  • Manufacturer Part Number:

    STP100N10F7

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-220, 3 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    400 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    80 A

  • Drain-source On Resistance-Max:

    0.008 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    150 W

  • Pulsed Drain Current-Max (IDM):

    320 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STP100N10F7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STP100N10F7 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, minimizing thermal resistance, and avoiding thermal hotspots.
  • The recommended gate drive voltage for the STP100N10F7 is between 10V and 15V, with a maximum gate-source voltage of ±20V.
  • To protect the STP100N10F7 from ESD, handle the device with anti-static wrist straps, mats, or bags, and ensure that the device is stored in a conductive container or bag.
  • The maximum allowed current for the STP100N10F7 is 100A, with a maximum pulsed current of 200A.
