Part Image

STP16CPP05PTR - STMicroelectronics

Description: 16 constant current output channels  Adjustable output current through external resistor  Output current: 3-40 mA  Serial data in/parallel data ouT  3.3 V or 5 V supply voltage  Max clock frequency 30 MHz  Schmitt-trigger input  ESD protection 2 kV HBM  Thermal shutdown

Download STP16CPP05PTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

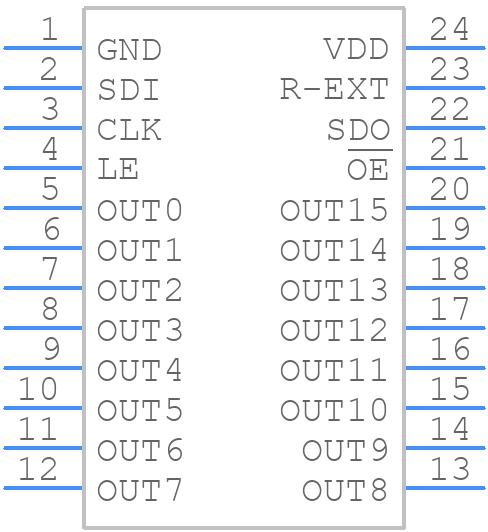

Symbol
STP16CPP05PTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STP16CPP05PTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - QSOP-24
click to zoom
3D Models
STP16CPP05PTR - STMicroelectronics - 3D model - Small Outline Packages - QSOP-24
click to zoom

STP16CPP05PTR Details

  • Manufacturer Part Number:

    STP16CPP05PTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    8.66 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max:

    9.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

  • fmax-Min:

    30 MHz

STP16CPP05PTR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STP16CPP05PTR is -40°C to 125°C.
  • To ensure reliable operation in high-humidity environments, it is recommended to use a moisture-resistant coating or conformal coating on the device, and to follow proper PCB design and assembly guidelines to prevent moisture ingress.
  • The recommended PCB layout and routing for the STP16CPP05PTR involves keeping the signal traces short and direct, using a solid ground plane, and avoiding vias and thermal reliefs near the device. It is also recommended to follow the PCB layout guidelines provided in the datasheet and application notes.
  • To handle ESD protection for the STP16CPP05PTR, it is recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input lines, and to follow proper handling and storage procedures to prevent ESD damage.
  • The recommended power-up sequence for the STP16CPP05PTR involves powering up the VCC supply before the VDD supply, and ensuring that the VCC supply is stable before applying the VDD supply.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

STP16CPP05PTR Overview

Use the download button to access the STP16CPP05PTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STP16, or try a keyword search, such as Display Drivers
