STP16CPPS05PTR - STMicroelectronics

Description: LED Driver IC 16 Output Linear Shift Register Dimming 40mA 24-QSOP

Download STP16CPPS05PTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

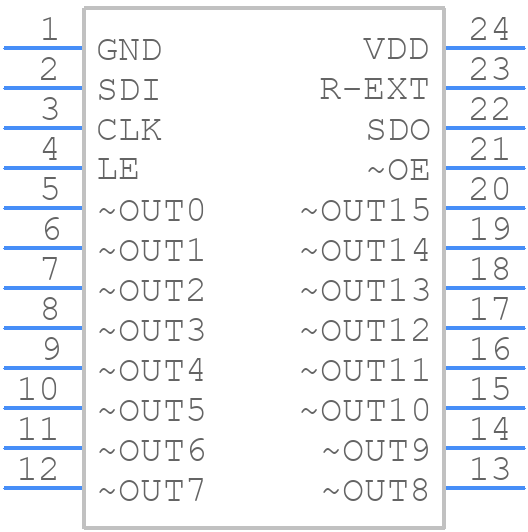

STP16CPPS05PTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STP16CPPS05PTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - QSOP-24
click to zoom
3D Models
STP16CPPS05PTR - STMicroelectronics - 3D model - Small Outline Packages - QSOP-24
click to zoom

STP16CPPS05PTR Details

  • Manufacturer Part Number:

    STP16CPPS05PTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    8.66 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max:

    9.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

  • fmax-Min:

    30 MHz

STP16CPPS05PTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2349, which includes guidelines for thermal pad connection, copper pour, and via placement to ensure optimal thermal performance.
  • The thermal shutdown feature is enabled by default, and it will shut down the device when the junction temperature exceeds 150°C. To handle this feature, ensure that your system can detect and respond to the shutdown signal, and provide a safe shutdown procedure to prevent damage to the device or system.
  • The maximum current rating for each output is 15mA, but it's recommended to derate the current to 10mA or less to ensure reliable operation and to prevent overheating.
  • The STP16CPPS05PTR can be programmed using the I2C interface. STMicroelectronics provides a programming guide and software tools to configure the device for custom LED configurations, including LED brightness, color, and pattern control.
  • It's recommended to use a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed as close as possible to the device's power supply pins, to ensure stable operation and to reduce noise and ripple.
