STPA003CD-48X - STMicroelectronics

Description: 4 x 52 W quad bridge power amplifier with high side driver and low voltage operation

Download STPA003CD-48X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

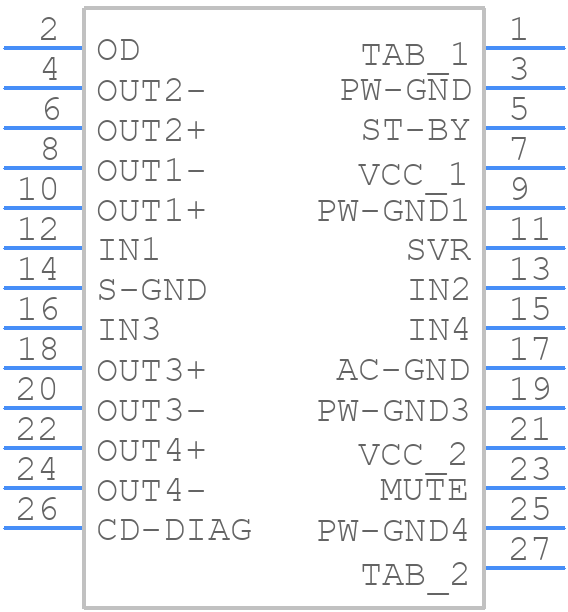

Symbol
STPA003CD-48X - STMicroelectronics - PCB symbol
click to zoom

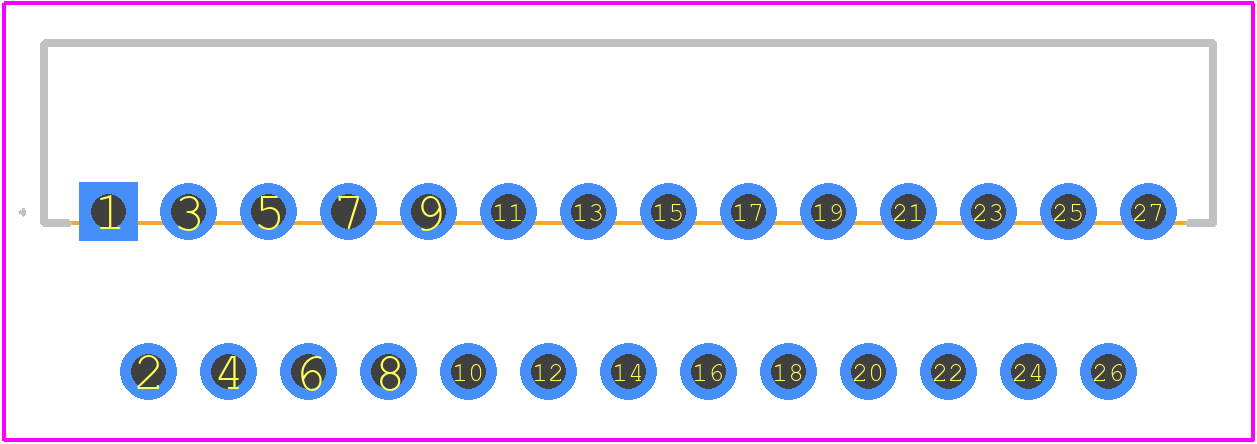

PCB Footprints
STPA003CD-48X - STMicroelectronics PCB footprint - Other - Other - STPA003CD-48X-1
click to zoom
3D Models
STPA003CD-48X - STMicroelectronics - 3D model - Other - STPA003CD-48X-1
click to zoom

STPA003CD-48X Details

  • Manufacturer Part Number:

    STPA003CD-48X

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FLEXIWATT-27

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Harmonic Distortion:

    0.01%

  • JESD-30 Code:

    R-XZFM-T27

  • JESD-609 Code:

    e3

  • Length:

    29.23 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    27

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    55 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Equivalence Code:

    ZIP27,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Seated Height-Max:

    19.37 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    4.5 mm

STPA003CD-48X Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a PCB layout with a large copper area connected to the thermal pad (exposed die attach) to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, ensure proper heat sinking, and consider using a thermal interface material (TIM) to reduce thermal resistance between the device and heat sink.
  • Although the datasheet specifies the recommended operating voltage range, it's essential to note that the maximum allowed voltage on the input pins is typically 5.5V, which is higher than the recommended VCC voltage. However, exceeding this voltage can cause permanent damage to the device.
  • The STPA003CD-48X has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment is properly grounded to prevent static discharge damage.
  • The recommended storage temperature range for the STPA003CD-48X is -40°C to 125°C. Storage outside this range can affect the device's reliability and performance.
