STPM14ATR - STMicroelectronics

Description: Single phase energy metering IC with pulsed output and digital calibration

Download STPM14ATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

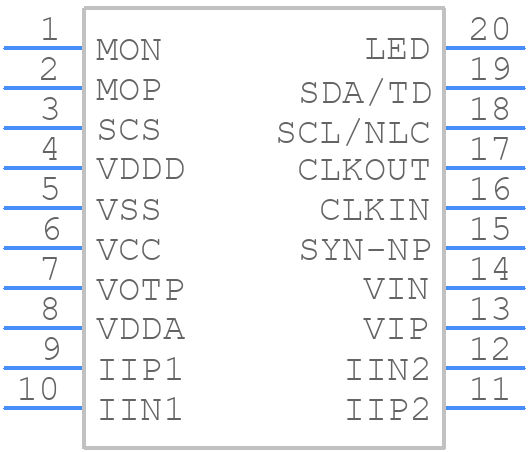

STPM14ATR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STPM14ATR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-20 package mechanical data-
click to zoom
3D Models
STPM14ATR - STMicroelectronics - 3D model - Small Outline Packages - TSSOP-20 package mechanical data-
click to zoom

STPM14ATR Details

  • Manufacturer Part Number:

    STPM14ATR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

STPM14ATR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4996, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating.
  • The maximum allowed voltage drop across the internal FETs is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to keep the voltage drop below 1V to ensure reliable operation and minimize power losses.
  • The STPM14ATR is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure the device operates within the recommended temperature range to maintain its specifications and lifespan.
  • To troubleshoot OCP issues, check the input voltage, current, and sense resistor values. Ensure the sense resistor is correctly connected and the OCP threshold is set correctly. Also, verify that the device is not overheating, and the PCB layout is correct. If issues persist, consult the application note AN4996 or contact STMicroelectronics support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STPM14ATR Overview

Use the download button to access the STPM14ATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STPM1, or try a keyword search, such as Other Signal Circuits
