STPMIC1EPQR - STMicroelectronics

Description: Power Management Specialised - PMIC 14 Output Rails PMIC 4 Adjustable (COT) Buck SMPS converters BOOST with Bypass

Download STPMIC1EPQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

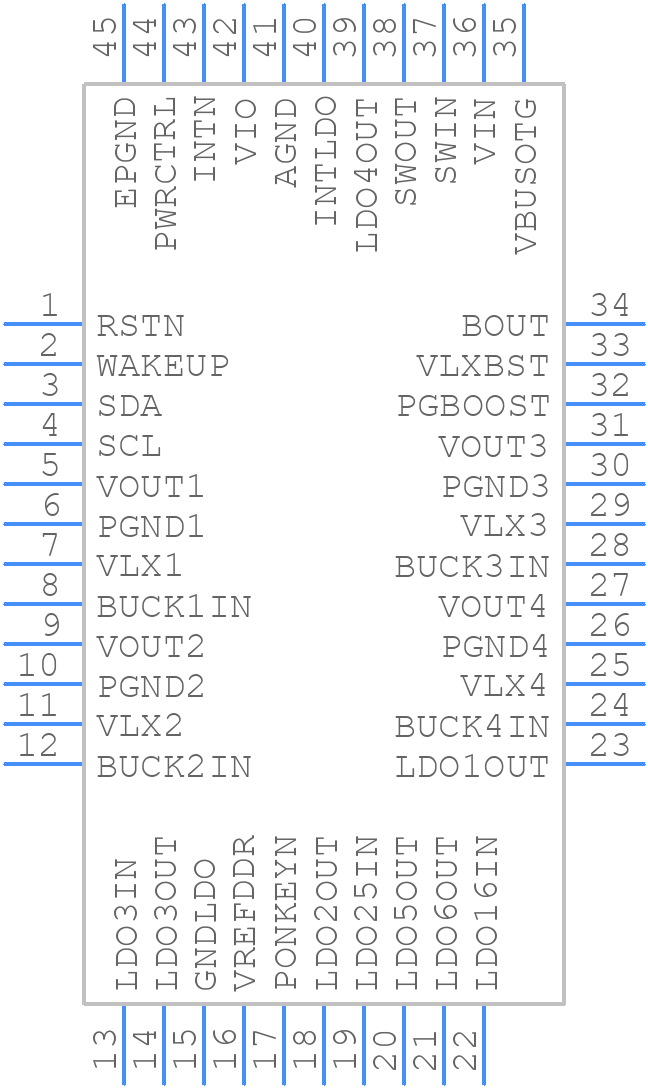

Symbol
STPMIC1EPQR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STPMIC1EPQR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - WFQFN-44
click to zoom
3D Models
STPMIC1EPQR - STMicroelectronics - 3D model - Quad Flat No-Lead - WFQFN-44
click to zoom

STPMIC1EPQR Details

  • Manufacturer Part Number:

    STPMIC1EPQR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WQFN-44

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-10-05

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-XQCC-N44

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC44,.16X.20,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.3V

  • Width:

    4 mm

STPMIC1EPQR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the STPMIC1EPQR is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended operating conditions to ensure reliable operation and to prevent damage to the device.
  • The STPMIC1EPQR is a highly configurable device, and the configuration depends on the specific application requirements. STMicroelectronics provides a software development kit (SDK) and a graphical user interface (GUI) tool to help configure the device. The SDK provides a set of APIs and examples to configure the device, while the GUI tool provides a visual interface to configure the device settings.
  • The power consumption of the STPMIC1EPQR depends on the operating mode and the configuration of the device. According to the datasheet, the typical quiescent current is around 10mA, but this can vary depending on the specific application and configuration. It's recommended to consult the datasheet and application notes for more detailed information on power consumption.
  • The STPMIC1EPQR is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly cooled and that the operating conditions are within the recommended specifications to prevent overheating and ensure reliable operation.
  • STMicroelectronics provides a range of resources to help troubleshoot issues with the STPMIC1EPQR, including application notes, FAQs, and technical support. It's recommended to consult the datasheet and application notes for troubleshooting guidelines and to contact STMicroelectronics' technical support team for assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STPMIC1EPQR Overview

Use the download button to access the STPMIC1EPQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STPMI, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
