STPSC20H12GY-TR - STMicroelectronics

Description: STMICROELECTRONICS - STPSC20H12GY-TR - SIC SCHOTTKY DIODE, AUTO, 1.2KV, TO-252

Download STPSC20H12GY-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STPSC20H12GY-TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

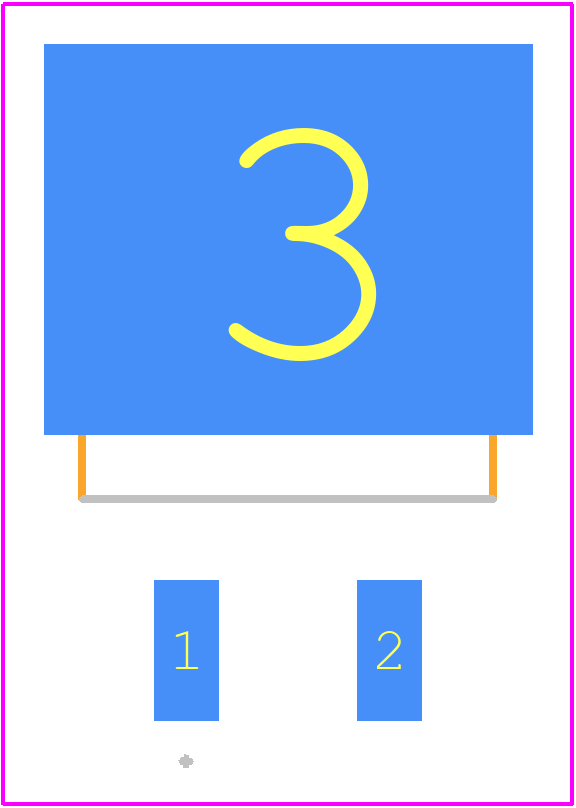

STPSC20H12GY-TR - STMicroelectronics PCB footprint - Other - Other - ST_D2PAK
click to zoom
3D Models
STPSC20H12GY-TR - STMicroelectronics - 3D model - Other - ST_D2PAK
click to zoom

STPSC20H12GY-TR Details

  • Manufacturer Part Number:

    STPSC20H12GY-TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    D2PAK-3/2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    25 Weeks

  • Date Of Intro:

    2017-01-30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Application:

    POWER

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON CARBIDE

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.5 V

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    140 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    1200 V

  • Reverse Current-Max:

    120 µA

  • Reverse Test Voltage:

    1200 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

STPSC20H12GY-TR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
  • The STPSC20H12GY-TR has built-in ESD protection diodes on all pins. To prevent latch-up, ensure that the device is powered up and down slowly, and avoid voltage spikes or transients on the power supply lines.
  • Yes, the STPSC20H12GY-TR is qualified for automotive and high-reliability applications. However, it's essential to follow the recommended operating conditions, and consider additional testing and validation for specific industry requirements.
  • STMicroelectronics recommends following the JEDEC J-STD-020 standard for soldering and rework. The device can withstand a maximum of 3 reflow cycles, with a peak temperature of 260°C for 20 seconds.
