STR05S15 - XP POWER

Description: XP Power Switching Regulator, 18 → 32V dc Input, 15V dc Output, 500mA

Download STR05S15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

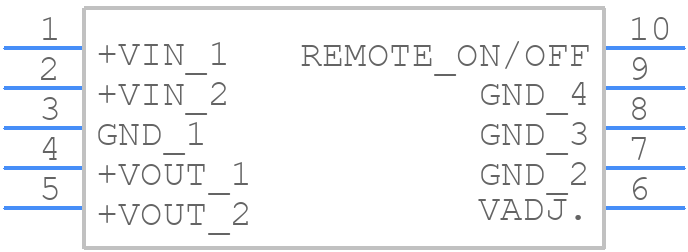

STR05S15 - XP POWER - PCB symbol
click to zoom
PCB Footprints
STR05S15 - XP POWER PCB footprint - Other - Other - STR05S15-1
click to zoom
3D Models
STR05S15 - XP POWER - 3D model - Other - STR05S15-1
click to zoom

STR05S15 Details

  • Manufacturer Part Number:

    STR05S15

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    XP Power

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-G10

  • Length:

    15.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    15.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,10LEAD,.49

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    9.05 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    380 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.6 mm

STR05S15 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area connected to the tab of the STR05S15 to dissipate heat efficiently. A minimum of 1 square inch of copper is recommended, and the use of thermal vias can further improve heat dissipation.
  • To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up voltage to prevent high inrush currents. Additionally, a minimum input voltage of 10V is recommended to ensure reliable start-up.
  • The STR05S15 can drive a maximum capacitive load of 10uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • The STR05S15 is rated for operation up to 85°C ambient temperature. However, derating of the output power may be necessary for temperatures above 70°C to ensure reliable operation. Consult the datasheet for derating curves.
  • XP Power recommends the use of a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit to protect the STR05S15 from input voltage surges or spikes. This can help prevent damage to the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STR05S15 Overview

Use the download button to access the STR05S15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STR05, or try a keyword search, such as Switching Regulator or Controllers
