Part Image

STS1024S12 - XP POWER

Description: XP Power Switching Regulator, 15 → 36V dc Input, 12V dc Output, 1A

Download STS1024S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

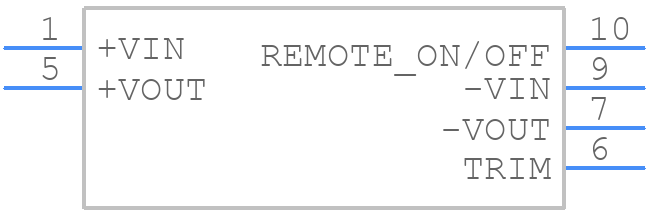

STS1024S12 - XP POWER - PCB symbol
click to zoom
PCB Footprints
STS1024S12 - XP POWER PCB footprint - Other - Other - STS1024S12-3
click to zoom
3D Models
STS1024S12 - XP POWER - 3D model - Other - STS1024S12-3
click to zoom

STS1024S12 Details

  • Manufacturer Part Number:

    STS1024S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD-10/6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-07-30

  • Manufacturer:

    XP Power

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    15 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-N6

  • Length:

    15.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    DILCC6/10,.47

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    4.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1200 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    2.52 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    11.8 mm

STS1024S12 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure reliable start-up and shutdown, XP Power recommends a soft-start circuit to limit inrush current, and a shutdown circuit with a voltage supervisor to prevent voltage drops during power-down.
  • The STS1024S12 meets the EN55011 and EN55022 Class B EMI standards, but additional filtering may be required depending on the specific application and environment. XP Power recommends consulting with their technical support team for customized EMI filter design.
  • The STS1024S12 is rated for operation up to 5,000 meters altitude and 40°C ambient temperature. For higher altitudes or temperatures, derating may be necessary. Consult with XP Power's technical support team for specific guidance.
  • The MTBF of the STS1024S12 is calculated to be >500,000 hours at 25°C ambient temperature, based on MIL-HDBK-217F reliability prediction methodology.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STS1024S12 Overview

Use the download button to access the STS1024S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STS10, or try a keyword search, such as Switching Regulator or Controllers
