STSPIN220 - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers Low voltage stepper motor driver

Download STSPIN220 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

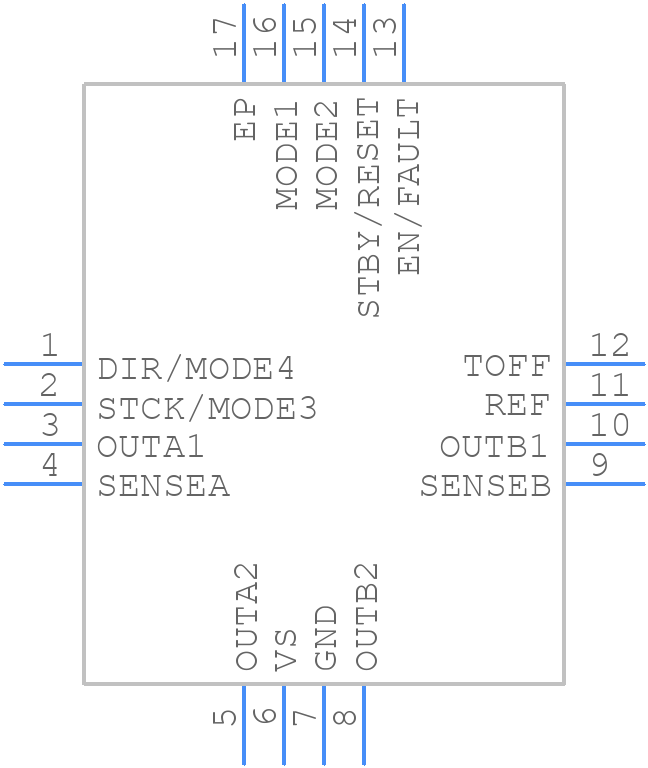

STSPIN220 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSPIN220 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 3x3x1.0 16L
click to zoom
3D Models
STSPIN220 - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 3x3x1.0 16L
click to zoom

STSPIN220 Details

  • Manufacturer Part Number:

    STSPIN220

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-06-30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    225

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

STSPIN220 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 36V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general rule of thumb is to choose a sense resistor value that results in a voltage drop of around 0.5V to 1V at the maximum motor current.
  • The EN (enable) pin is used to enable or disable the STSPIN220. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use the EN pin to implement a shutdown or standby mode in your application.
  • The STSPIN220 is a general-purpose motor driver, and its configuration depends on the specific motor type and application requirements. You may need to adjust the driver's settings, such as the current limit, acceleration, and deceleration rates, to optimize performance for your specific motor type.
  • The STSPIN220 can handle a maximum current of 2A per phase, but the actual current handling capability depends on the PCB design, thermal management, and ambient temperature.
