STSPIN230 - STMicroelectronics

Description: STMICROELECTRONICS - STSPIN230 - MOTOR DRIVER, HALF BRIDGE, 1.3A, VFQFPN

Download STSPIN230 Model

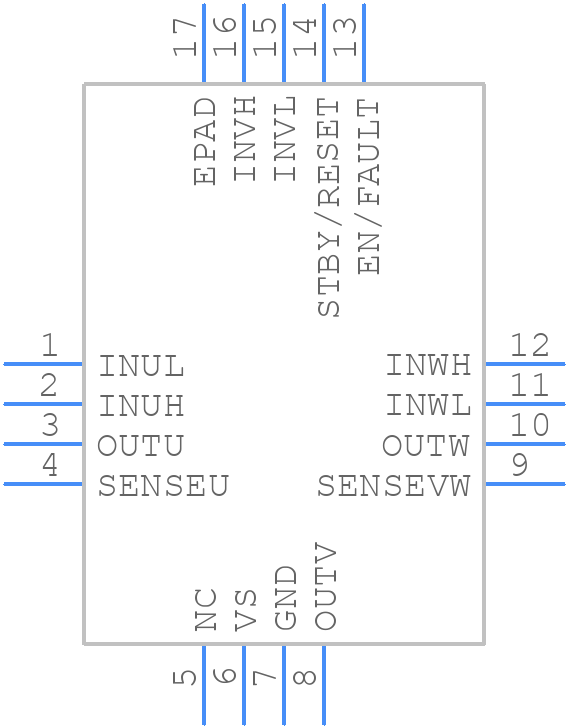

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
STSPIN230 - STMicroelectronics PCB footprint - Other - Other - VFQFPN(3x3x1.0mm-16L)
click to zoom
3D Models
STSPIN230 - STMicroelectronics  - 3D model - Other - VFQFPN(3x3x1.0mm-16L)
click to zoom

STSPIN230 Details

  • Manufacturer Part Number:

    STSPIN230

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Date Of Intro:

    2016-06-30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

STSPIN230 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 36V for reliable operation.
  • Connect the bootstrap capacitors between the BOOT pin and the corresponding driver output pin (HS or LS). Ensure the capacitors are rated for the maximum voltage and have a low ESR to minimize voltage drops.
  • The RSENSE resistor is used to sense the current flowing through the motor windings. Choose a value that provides a suitable current sense voltage (typically 0.1-1V) at the maximum expected motor current.
  • For 3-phase operation, connect the U, V, and W phase inputs to the corresponding motor windings. For 2-phase operation, connect the U and V phase inputs to the motor windings and leave the W phase input floating.
  • Use a 4-layer PCB with a solid ground plane and a separate power plane. Ensure good thermal conductivity by using thermal vias and a heat sink if necessary. Keep the IC away from high-current paths and heat sources.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STSPIN230 Overview

Use the download button to access the STSPIN230 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STSPI, or try a keyword search, such as Motion Control Electronics
