STSPIN32F0251TR - STMicroelectronics

Description: Advanced 250 V three-phase BLDC controller with embedded STM32 MCU

Download STSPIN32F0251TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STSPIN32F0251TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

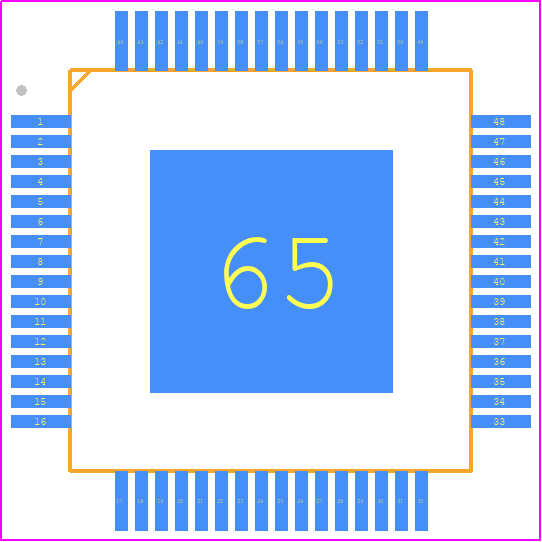

STSPIN32F0251TR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP 10x10 64L
click to zoom
3D Models
STSPIN32F0251TR - STMicroelectronics - 3D model - Quad Flat Packages - TQFP 10x10 64L
click to zoom

STSPIN32F0251TR Details

  • Manufacturer Part Number:

    STSPIN32F0251TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2019-09-06

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

STSPIN32F0251TR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the STSPIN32F0251TR is 250 kHz.
  • To configure the STSPIN32F0251TR for 3-phase motor control, you need to set the device in 3-phase mode by setting the MODE pin high. Then, you need to configure the PWM frequency, dead-time, and other parameters according to your motor's requirements.
  • The maximum current rating of the STSPIN32F0251TR is 2.5 A per phase.
  • The STSPIN32F0251TR has built-in overcurrent and overtemperature protection. You can also add external protection circuits, such as fuses and thermal sensors, to provide additional protection.
  • Yes, the STSPIN32F0251TR can be used for brushless DC motor control. You need to configure the device in 3-phase mode and use a suitable algorithm, such as field-oriented control or sinusoidal control, to control the motor.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STSPIN32F0251TR Overview

Use the download button to access the STSPIN32F0251TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STSPI, or try a keyword search, such as Motion Control Electronics
