STSPIN830 - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers Compact and versatile three-phase and three-sense BLDC motor driver

Download STSPIN830 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

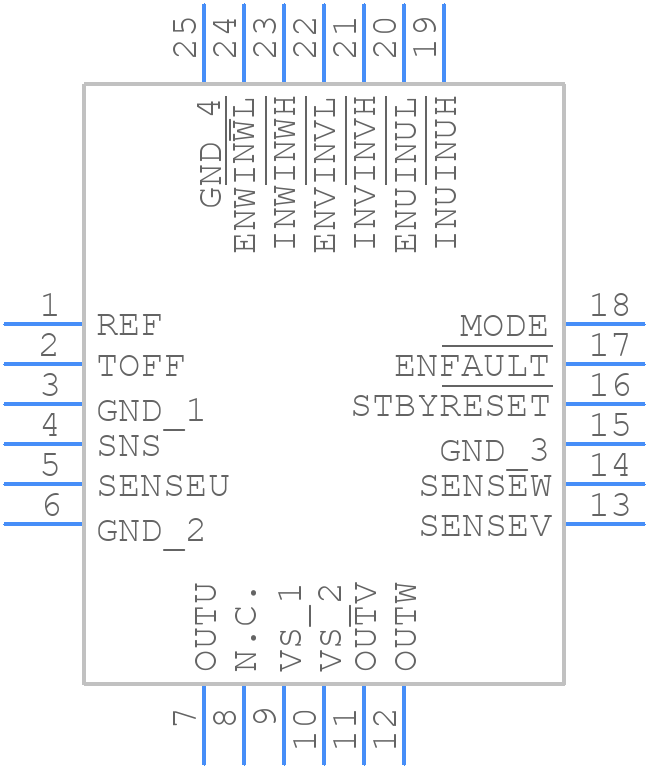

STSPIN830 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSPIN830 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TQFN4x4
click to zoom
3D Models
STSPIN830 - STMicroelectronics - 3D model - Quad Flat No-Lead - TQFN4x4
click to zoom

STSPIN830 Details

  • Manufacturer Part Number:

    STSPIN830

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFN-24

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Date Of Intro:

    2018-05-18

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC24,.15SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    36 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

STSPIN830 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 36V for reliable operation.
  • To configure the STSPIN830 for 3-phase brushless motor control, you need to connect the motor windings to the OUT1-OUT6 pins, and configure the device through the SPI interface to select the 3-phase mode. You'll also need to provide the necessary commutation signals to the GPIO pins.
  • The maximum current that the STSPIN830 can handle is 2A per phase, but it's recommended to keep it below 1.5A per phase for reliable operation and to prevent overheating.
  • To implement overcurrent protection with the STSPIN830, you can use the built-in overcurrent detection feature, which can be configured through the SPI interface. You can also use external current sense resistors and a comparator to detect overcurrent conditions.
  • Yes, the STSPIN830 can be used for stepper motor control. You can configure the device to operate in stepper motor mode through the SPI interface, and use the GPIO pins to control the stepper motor's direction and step signals.
