STSR2PMCD-TR - STMicroelectronics

Description: 4.5V ~ 5.5V Forward synchronous rectifiers smart driver, Low-Side Gate Driver IC Non-Inverting 8-SOIC

Download STSR2PMCD-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

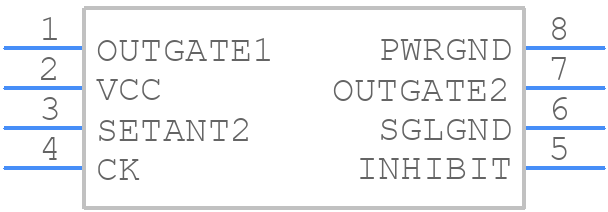

STSR2PMCD-TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSR2PMCD-TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8 package
click to zoom
3D Models
STSR2PMCD-TR - STMicroelectronics - 3D model - Small Outline Packages - SO-8 package
click to zoom

STSR2PMCD-TR Details

  • Manufacturer Part Number:

    STSR2PMCD-TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1980-01-04

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    3.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.25 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    3.9 mm

STSR2PMCD-TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor values depend on the input voltage, output voltage, and desired output ripple. A general guideline is to use a minimum of 10uF ceramic capacitors with a voltage rating of at least 1.5 times the input voltage. However, it's recommended to consult the application note AN5323 and perform simulations to determine the optimal capacitor values for your specific design.
  • While the datasheet specifies an operating temperature range of -40°C to 150°C, the maximum ambient temperature for reliable operation is typically around 125°C. Exceeding this temperature may affect the device's reliability and lifespan.
  • To ensure EMC compliance, follow the guidelines in the application note AN5323, which includes recommendations for PCB layout, component selection, and shielding. Additionally, perform EMC testing and simulation to validate your design's compliance with relevant standards such as IEC 61000-4-2 and CISPR 25.
  • The STSR2PMCD-TR has a high power density, so effective thermal management is crucial. A recommended strategy is to use a thermal pad or heat sink with a thermal interface material (TIM) to dissipate heat. Ensure good airflow around the device, and consider using thermal vias or thermal layers in the PCB to further improve heat dissipation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STSR2PMCD-TR Overview

Use the download button to access the STSR2PMCD-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STSR2, or try a keyword search, such as MOSFET Drivers
