STSR30D - STMicroelectronics

Description: MOSFET Driver 1.5A Synch. Rectifier STMicroelectronics STSR30D, MOSFET Power Driver 1.5A, 4 → 5.5 V, 8-Pin SOIC

Download STSR30D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

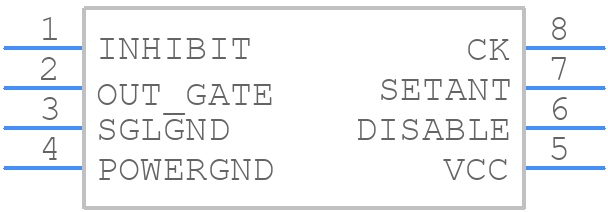

STSR30D - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSR30D - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8_2020
click to zoom
3D Models
STSR30D - STMicroelectronics - 3D model - Small Outline Packages - SOIC-8_2020
click to zoom

STSR30D Details

  • Manufacturer Part Number:

    STSR30D

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

STSR30D Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The STSR30D has an internal calibration mechanism, but it's recommended to perform an external calibration using a precision temperature source to achieve high accuracy. The calibration process involves measuring the device's output at multiple temperature points and adjusting the internal calibration coefficients accordingly.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, the device can tolerate short-term excursions up to 150°C. However, prolonged exposure to temperatures above 125°C may affect the device's reliability and accuracy.
  • Yes, the STSR30D is designed to be vibration-resistant and can operate in environments with vibrations up to 10g. However, it's essential to ensure proper PCB mounting and mechanical fixation to prevent damage or dislodging of the device.
  • The POR and BOR mechanisms are designed to ensure the device's internal registers are reset to their default values during power-up or brown-out conditions. To handle these mechanisms, it's recommended to add external circuitry to filter the power supply and ensure a clean power-up sequence.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STSR30D Overview

Use the download button to access the STSR30D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STSR3, or try a keyword search, such as Switching Regulator or Controllers
