STUSB1602AQTR - STMicroelectronics

Description: STMICROELECTRONICS - STUSB1602AQTR - USB TYPE-C CONTROLLER, QFN-24

Download STUSB1602AQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

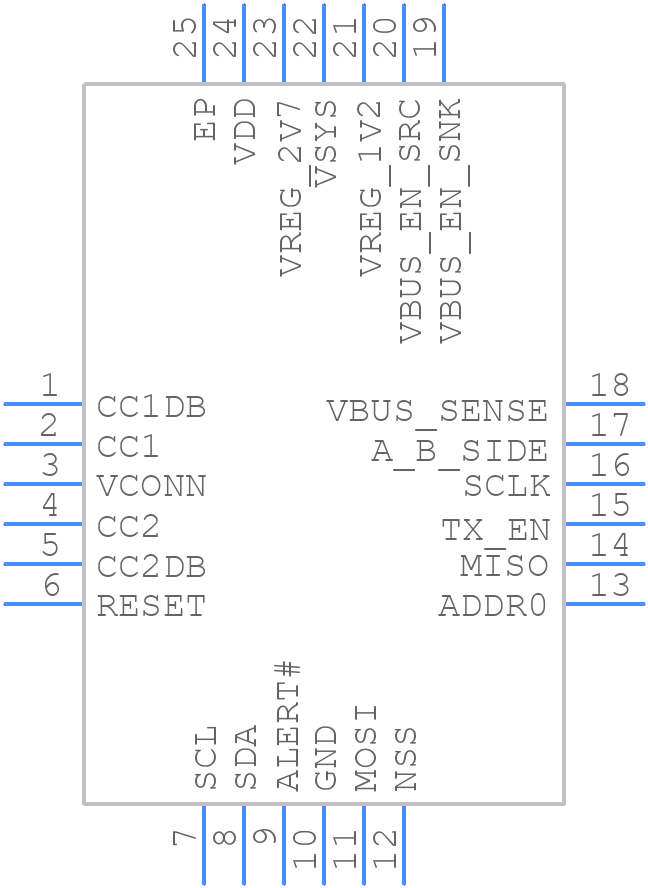

STUSB1602AQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB1602AQTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24 EP 4x4 mm
click to zoom
3D Models
STUSB1602AQTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN24 EP 4x4 mm
click to zoom

STUSB1602AQTR Details

  • Manufacturer Part Number:

    STUSB1602AQTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-08-22

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

STUSB1602AQTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the STUSB1602AQTR involves placing the device near the USB connector, using a solid ground plane, and minimizing the length of the USB traces to reduce electromagnetic interference (EMI).
  • The STUSB1602AQTR requires a 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a stable voltage supply. Additionally, decoupling capacitors should be placed close to the device to filter out noise.
  • The STUSB1602AQTR supports cable lengths up to 3 meters, but the actual length may vary depending on the cable quality, signal frequency, and system noise. It's recommended to use high-quality, shielded cables to minimize signal degradation.
  • To configure the STUSB1602AQTR for high-speed USB operation, the device must be connected to a high-speed capable USB host, and the device's HS_EN pin must be tied high. Additionally, the device's output impedance should be matched to the transmission line impedance to ensure signal integrity.
  • The STUSB1602AQTR has an electrostatic discharge (ESD) protection level of ±8 kV, which exceeds the USB specification requirements. This ensures that the device can withstand ESD events that may occur during handling or operation.
