- Part Number STUSB1602QTR
- Manufacturer STMicroelectronics
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN24 EP 4x4 mm
- Released Date Aug 30, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
STUSB1602QTR Details
-
Manufacturer Part Number:
STUSB1602QTR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
QFN-24
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2017-01-27
-
Manufacturer:
STMicroelectronics
-
YTEOL:
3
-
Adjustable Threshold:
YES
STUSB1602QTR Frequently Asked Questions (FAQs)
-
A good PCB layout for the STUSB1602QTR involves keeping the high-speed USB traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure EMC, use a metal shield around the device, keep the USB cable away from noise sources, and use a common-mode filter on the USB lines. Also, ensure that the PCB layout is designed to minimize radiation and susceptibility to electromagnetic interference.
-
The STUSB1602QTR supports cable lengths up to 3 meters, but this can be extended up to 5 meters with the use of active cables or repeaters. However, the maximum cable length may vary depending on the specific application and environment.
-
The STUSB1602QTR has a built-in power management system that can be controlled through the I2C interface. The device can be configured to enter low-power modes to reduce power consumption when not in use. Additionally, the device can be powered from the USB bus or an external power source.
-
The STUSB1602QTR has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within a temperature range of -40°C to 85°C. A thermal pad on the bottom of the package helps to dissipate heat, and a heat sink may be required for high-power applications.
Trust Checks
Expert Contribution
System Verified
Community Approved
STUSB1602QTR Overview

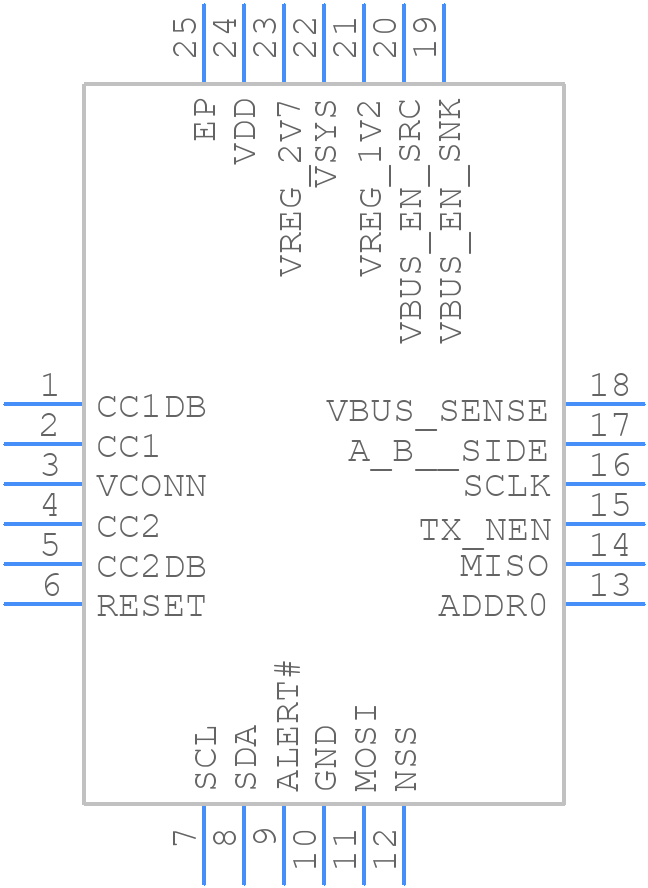

Use the download button to access the STUSB1602QTR schematic symbol, PCB footprint, and 3D model.
