STUSB4500BJR - STMicroelectronics

Description: Standalone USB PD sink controller with short-to-VBUS protections

Download STUSB4500BJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

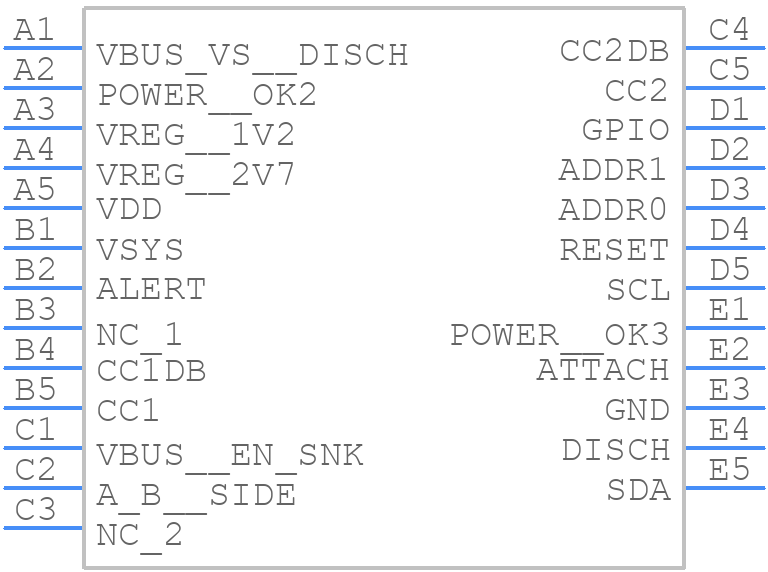

STUSB4500BJR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB4500BJR - STMicroelectronics PCB footprint - BGA - BGA - BGA-25_2021_1
click to zoom
3D Models
STUSB4500BJR - STMicroelectronics - 3D model - BGA - BGA-25_2021_1
click to zoom

STUSB4500BJR Details

  • Manufacturer Part Number:

    STUSB4500BJR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-25

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-07-06

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XBCS-B25

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    CSP

  • Package Equivalence Code:

    BGA25,5X5,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP SCALE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.544 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.6 mm

STUSB4500BJR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the STUSB4500BJR involves placing the device near the USB connector, using a solid ground plane, and keeping the signal traces short and away from noise sources. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure EMC with the STUSB4500BJR, follow proper PCB layout guidelines, use a shielded USB connector, and add EMI filtering components such as ferrite beads and capacitors to the USB lines.
  • The STUSB4500BJR supports cable lengths up to 3 meters, but this can be extended up to 5 meters with the use of active cables or repeaters.
  • Yes, the STUSB4500BJR can be used in a USB-C application, but it requires an external USB-C controller and a USB-C connector with a configuration channel (CC) pin.
  • The STUSB4500BJR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The device will then limit the current to a safe level in case of an overcurrent event.
