STUSB4500LBJR - STMicroelectronics

Description: STMicroelectronics Standalone USB Type-C port controller for power sinking devices

Download STUSB4500LBJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

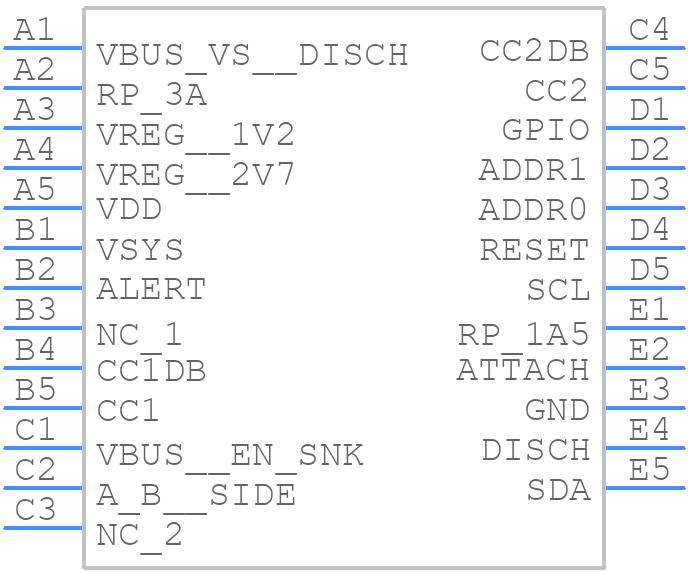

STUSB4500LBJR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB4500LBJR - STMicroelectronics PCB footprint - BGA - BGA - BGA-25
click to zoom
3D Models
STUSB4500LBJR - STMicroelectronics - 3D model - BGA - BGA-25
click to zoom

STUSB4500LBJR Details

  • Manufacturer Part Number:

    STUSB4500LBJR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-25

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-10-10

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.1

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XBCS-B25

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    CSP

  • Package Equivalence Code:

    BGA25,5X5,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP SCALE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.544 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.6 mm

STUSB4500LBJR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the STUSB4500LBJR is to use a 4-layer PCB with a solid ground plane on the bottom layer, and to keep the high-speed signals (e.g. USB lines) away from the power planes. Additionally, it is recommended to use a common mode filter (CMF) on the USB lines to reduce electromagnetic interference (EMI).
  • To configure the STUSB4500LBJR for USB-C Alt Mode, you need to set the MODE pin to '1' and the ALT_MODE pin to '1'. Additionally, you need to configure the device to use the correct Alternate Mode protocol (e.g. DisplayPort, MHL, etc.) using the I2C interface.
  • The maximum current rating for the STUSB4500LBJR is 3A per channel (VCONN and VBUS). However, the actual current rating may be limited by the PCB design, thermal considerations, and other factors, so it's recommended to consult the datasheet and application notes for more information.
  • The STUSB4500LBJR has built-in overcurrent protection (OCP) capabilities. To implement OCP, you need to connect an external resistor (R_OCP) between the OCP pin and GND, and set the OCP threshold using the I2C interface. The device will then automatically limit the current to the set threshold in case of an overcurrent event.
  • Yes, the STUSB4500LBJR can be used with a USB-C receptacle that has a built-in CC pin. In this case, the CC pin on the receptacle should be connected to the CC pin on the STUSB4500LBJR, and the device will automatically detect the CC pin state and configure itself accordingly.
