STUSB4500LQTR - STMicroelectronics

Description: USB Interface IC Standalone USB Type-C port controller for power sinking devices

Download STUSB4500LQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

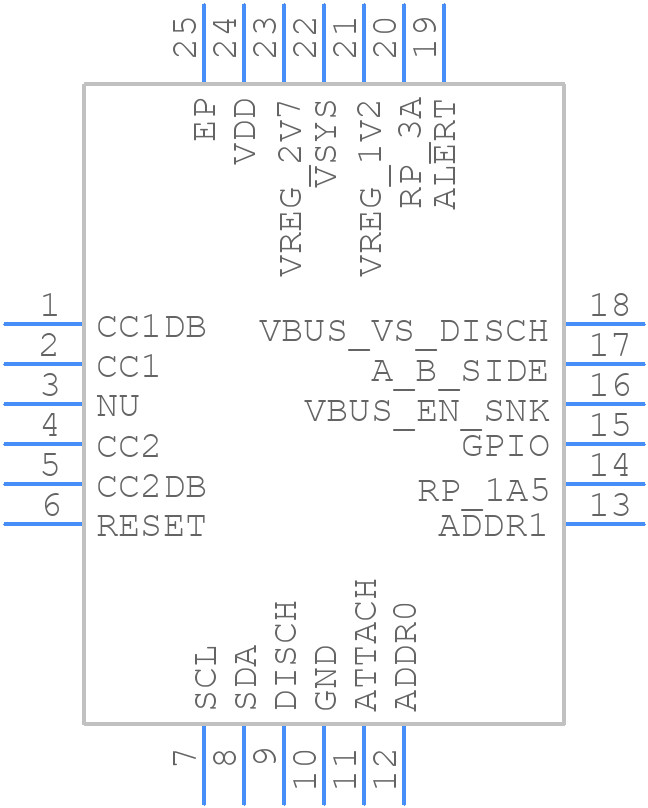

STUSB4500LQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB4500LQTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-24 EP (4x4)
click to zoom
3D Models
STUSB4500LQTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN-24 EP (4x4)
click to zoom

STUSB4500LQTR Details

  • Manufacturer Part Number:

    STUSB4500LQTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2019-10-10

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

STUSB4500LQTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the STUSB4500LQTR involves placing the device near the USB connector, using a solid ground plane, and keeping the signal traces short and away from noise sources. A 4-layer PCB with a dedicated power plane is recommended.
  • To ensure EMC with the STUSB4500LQTR, follow proper PCB layout guidelines, use a shielded USB connector, and add EMI filtering components such as ferrite beads and capacitors to the USB lines.
  • The STUSB4500LQTR supports cable lengths up to 3 meters, but this can be extended up to 5 meters with the use of active cables or repeaters.
  • Yes, the STUSB4500LQTR can be used in a USB-C application, but it requires an external USB-C controller and a configuration channel (CC) logic to manage the USB-C port.
  • The STUSB4500LQTR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The device will then limit the current to a safe level in case of an overcurrent event.
