STUSB4500QTR - STMicroelectronics

Description: Standalone USB PD sink controller with short-to-VBUS protections

Download STUSB4500QTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

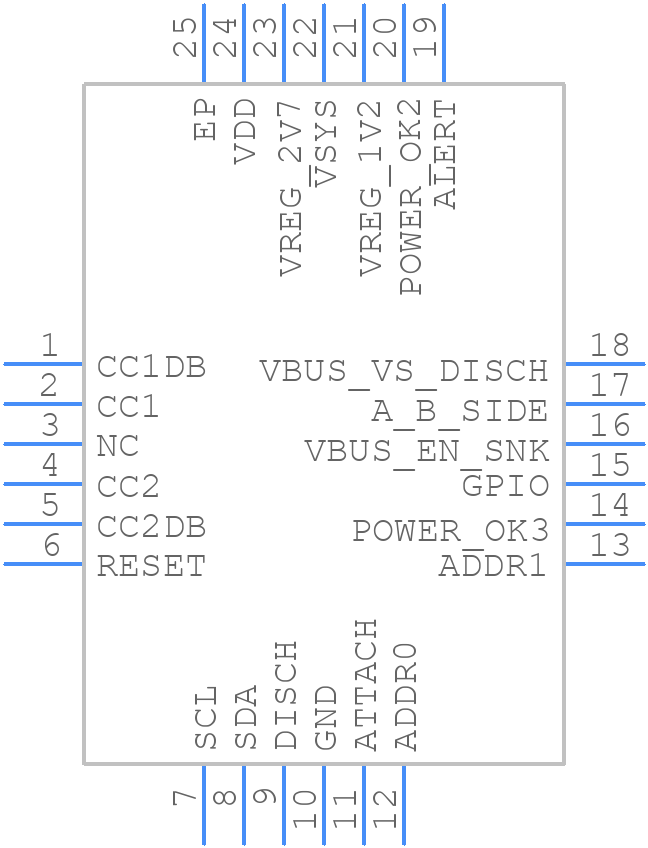

STUSB4500QTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB4500QTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24-1
click to zoom
3D Models
STUSB4500QTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN24-1
click to zoom

STUSB4500QTR Details

  • Manufacturer Part Number:

    STUSB4500QTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-04-09

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

STUSB4500QTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the STUSB4500QTR involves placing the device near the USB connector, using a solid ground plane, and keeping the signal traces short and away from noise sources. A 4-layer PCB with a dedicated power plane is recommended.
  • To ensure EMC with the STUSB4500QTR, use a shielded cable, keep the device away from noise sources, and use a common-mode filter on the USB lines. Additionally, ensure that the PCB layout is designed to minimize radiation and susceptibility to electromagnetic interference.
  • The STUSB4500QTR supports cable lengths up to 3 meters, but the actual maximum length may vary depending on the specific application and the quality of the cable. It's recommended to use high-quality, shielded cables to minimize signal degradation.
  • Yes, the STUSB4500QTR supports high-speed data transfer rates up to 5 Gbps, making it suitable for applications requiring fast data transfer, such as external hard drives and high-resolution displays.
  • The STUSB4500QTR can be configured for different USB modes (e.g., USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2) by setting the MODE pin and using the appropriate resistors on the USB lines. Refer to the datasheet for specific configuration details.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STUSB4500QTR Overview

Use the download button to access the STUSB4500QTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STUSB, or try a keyword search, such as Power Management Circuits
