STUSB4700QTR - STMicroelectronics

Description: Stand-alone autonomous USB PD controller with short-to-VBUS protections

Download STUSB4700QTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

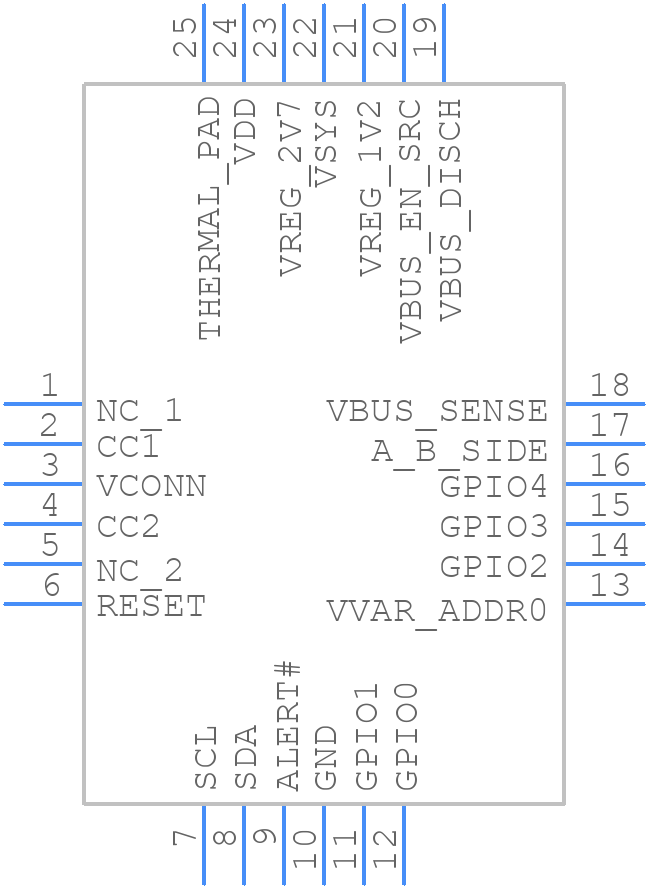

Symbol
STUSB4700QTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB4700QTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - STUSB4700QTR
click to zoom
3D Models
STUSB4700QTR - STMicroelectronics - 3D model - Quad Flat No-Lead - STUSB4700QTR
click to zoom

STUSB4700QTR Details

  • Manufacturer Part Number:

    STUSB4700QTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD Controller

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.2,.4..8,1.6,2.6

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

STUSB4700QTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the STUSB4700QTR involves placing the device near the USB connector, using a solid ground plane, and minimizing the length of the USB traces to reduce electromagnetic interference (EMI).
  • To ensure compliance with USB-IF certification requirements, follow the USB-IF guidelines for USB 2.0 and USB 3.2 Gen 1, and perform thorough testing and validation of the design, including signal integrity, power delivery, and electromagnetic compatibility (EMC) testing.
  • The STUSB4700QTR has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and follow proper PCB design and layout guidelines to minimize thermal resistance.
  • The STUSB4700QTR has an integrated voltage regulator, but external power management is still required. Use a suitable voltage regulator and power management IC to ensure stable power supply to the device and other components in the system.
  • The STUSB4700QTR has integrated ESD protection, but additional external protection may be necessary depending on the application. Follow proper ESD protection guidelines and use TVS diodes or other protection devices as needed to ensure robustness against electrostatic discharge.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STUSB4700QTR Overview

Use the download button to access the STUSB4700QTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STUSB, or try a keyword search, such as Power Management Circuits
