STUSB4700YQTR - STMicroelectronics

Description: Stand-alone autonomous USB PD controller with short-to-VBUS protections

Download STUSB4700YQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

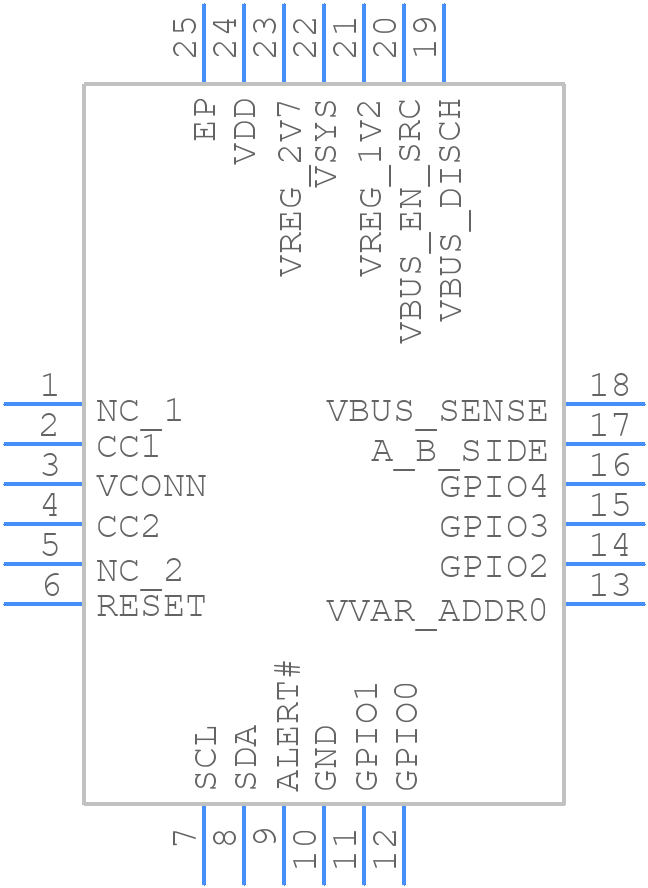

STUSB4700YQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB4700YQTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24 EP 4x4 mm wettable flank mechanical data
click to zoom
3D Models
STUSB4700YQTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN24 EP 4x4 mm wettable flank mechanical data
click to zoom

STUSB4700YQTR Details

  • Manufacturer Part Number:

    STUSB4700YQTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD Controller

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.2,.4..8,1.6,2.6

  • Width:

    4 mm

STUSB4700YQTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the STUSB4700YQTR involves placing the device near the USB connector, using a solid ground plane, and keeping the signal traces short and away from noise sources. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure EMC with the STUSB4700YQTR, use a shielded USB connector, keep the device away from noise sources, and use a common-mode filter on the USB lines. Additionally, ensure that the PCB layout is designed to minimize radiation and susceptibility to electromagnetic interference.
  • The STUSB4700YQTR supports cable lengths up to 3 meters, but this can be extended up to 5 meters with the use of active cables or repeaters. However, the maximum cable length may vary depending on the specific application and the quality of the cable.
  • The STUSB4700YQTR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The value of the resistor and capacitor determines the overcurrent threshold and response time.
  • The STUSB4700YQTR is designed to work with standard USB Type-C connectors, but it can be used with non-standard connectors with some modifications to the PCB layout and the device's configuration. However, this may require additional testing and validation to ensure compliance with USB specifications.
