Please enter a minimum 3 letters or numbers
Technical Content
Part Image

STUSB4710ADTR - STMicroelectronics

Description: Stand-alone USB PD controller (with integrated discharge path)

Download STUSB4710ADTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

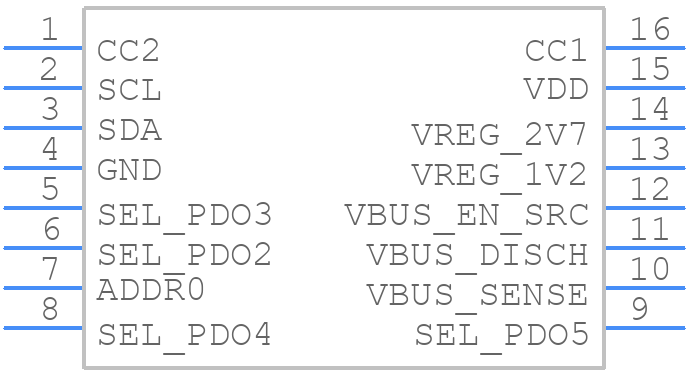

STUSB4710ADTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB4710ADTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16 Narrow
click to zoom
3D Models
STUSB4710ADTR - STMicroelectronics - 3D model - Small Outline Packages - SO16 Narrow
click to zoom

STUSB4710ADTR Details

  • Manufacturer Part Number:

    STUSB4710ADTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-08-30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.8

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD Controller

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

STUSB4710ADTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management.
  • The STUSB4710ADTR can be configured using the I2C interface to support different USB-C applications, such as USB-C charging, USB-C data transfer, and USB-C audio accessories. The configuration process is described in the datasheet and application notes.
  • The STUSB4710ADTR has a maximum current rating of 3A per channel, making it suitable for high-power USB-C applications.
  • The STUSB4710ADTR has built-in protection mechanisms to handle fault conditions, including overvoltage protection, undervoltage protection, and thermal shutdown. These mechanisms are described in the datasheet.
  • Yes, the STUSB4710ADTR is AEC-Q100 qualified, making it suitable for use in automotive applications. However, additional testing and validation may be required to ensure compliance with specific automotive standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STUSB4710ADTR Overview

Use the download button to access the STUSB4710ADTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STUSB, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut

Suggested Parts

If you searched for STUSB4710ADTR, you might also be interested in these parts:
Part Number
PTN5110HQZ
STUSB1602AQTR
4056
5962-8944101VCA
5962-8954801PA
5962-8984502VCA
5962-8986303YA
5962-8988002GC
5962-8990502VEA

Parts related to STUSB4710ADTR

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
