STUSB4710AQ1TR - STMicroelectronics

Description: Stand-alone USB PD controller (with short-to-VBUS protection)

Download STUSB4710AQ1TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

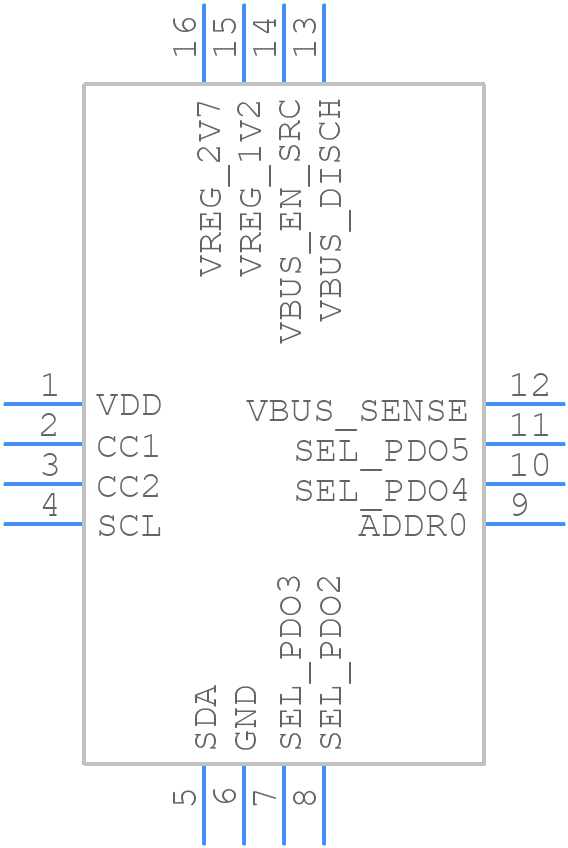

STUSB4710AQ1TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB4710AQ1TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 (3x3x0.55)
click to zoom
3D Models
STUSB4710AQ1TR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN16 (3x3x0.55)
click to zoom

STUSB4710AQ1TR Details

  • Manufacturer Part Number:

    STUSB4710AQ1TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2017-08-30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.2V

  • Width:

    3 mm

STUSB4710AQ1TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the STUSB4710AQ1TR is a 4-layer board with a solid ground plane, and the device should be placed near the USB connector. The datasheet provides a recommended layout and thermal management guidelines.
  • To ensure EMC, follow the recommended PCB layout, use a shielded USB connector, and add a common-mode filter (e.g., a ferrite bead) on the USB lines. Additionally, ensure that the device is properly grounded and that the system meets the relevant EMC standards.
  • The STUSB4710AQ1TR supports cable lengths up to 3 meters (10 feet) for USB 2.0 and 1.5 meters (5 feet) for USB 3.2 Gen 1. However, the actual cable length may vary depending on the specific application and cable quality.
  • Yes, the STUSB4710AQ1TR is compatible with USB-C connectors. However, ensure that the USB-C connector is properly configured to support the desired USB mode (e.g., USB 2.0 or USB 3.2 Gen 1) and that the system meets the relevant USB-C specifications.
  • The STUSB4710AQ1TR has an integrated power management system that can be controlled through the I2C interface. The device can be configured to enter low-power modes to reduce power consumption when not in use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STUSB4710AQ1TR Overview

Use the download button to access the STUSB4710AQ1TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STUSB, or try a keyword search, such as Power Management Circuits
