Part Image

STUSB4710AQTR - STMicroelectronics

Description: Super Speed PD Controller 5V/9V/12V/15V/18V/24V T/R 24-Pin QFN EP

Download STUSB4710AQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

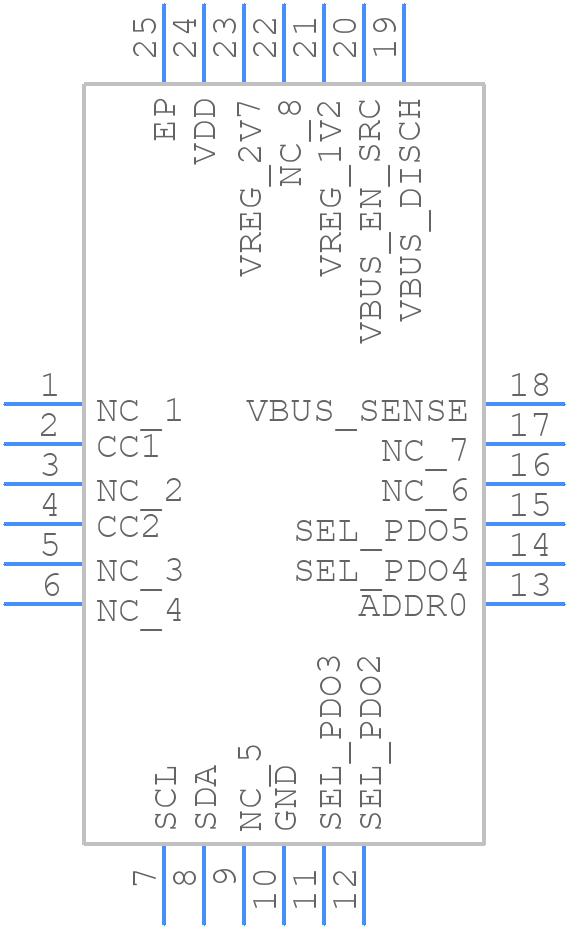

Symbol
STUSB4710AQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB4710AQTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-24 EP (4x4)
click to zoom
3D Models
STUSB4710AQTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN-24 EP (4x4)
click to zoom

STUSB4710AQTR Details

  • Manufacturer Part Number:

    STUSB4710AQTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-08-30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.2V

  • Width:

    4 mm

STUSB4710AQTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the STUSB4710AQTR involves placing the device near the USB connector, using a solid ground plane, and keeping the signal traces short and shielded to minimize EMI.
  • To ensure reliable operation in high-temperature environments, ensure proper thermal management, use a heat sink if necessary, and follow the recommended operating conditions outlined in the datasheet.
  • When using the STUSB4710AQTR in a USB-C application, ensure that the device is configured correctly for the USB-C specification, and consider the additional power delivery and alternate mode requirements.
  • To troubleshoot issues with the STUSB4710AQTR, use a logic analyzer or oscilloscope to monitor the device's signals, check the power supply and voltage regulator, and verify that the device is properly configured and connected.
  • The STUSB4710AQTR has built-in ESD protection and surge immunity capabilities, meeting the IEC 61000-4-2 and IEC 61000-4-5 standards, respectively, to protect against electrostatic discharge and power surges.
