- Part Number STUSB4710QTR
- Manufacturer STMicroelectronics
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN24 EP 4x4 mm
- Released Date Mar 1, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
STUSB4710QTR Details
-
Manufacturer Part Number:
STUSB4710QTR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active Unconfirmed
-
Package Description:
QFN-24
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
53 Weeks, 1 Day
-
Date Of Intro:
2017-07-13
-
Manufacturer:
STMicroelectronics
-
YTEOL:
6.75
STUSB4710QTR Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The STUSB4710QTR is a highly configurable device, and the configuration depends on the specific application. STMicroelectronics provides a software development kit (SDK) and a configuration tool that allows engineers to customize the device for different USB-C applications, including USB PD and USB-C Alt Mode.
-
The maximum cable length supported by the STUSB4710QTR depends on the specific application and the type of cable used. In general, the device supports cable lengths up to 3 meters for USB 2.0 and 1 meter for USB 3.2 Gen 2. However, the actual cable length may vary depending on the cable quality and the system design.
-
The STUSB4710QTR is a USB-C power delivery (PD) controller that supports up to 100W of power delivery. It can handle power delivery and charging through the USB-C port, and it also supports bi-directional power delivery, which means it can both source and sink power.
-
The STUSB4710QTR is designed to be compatible with other USB-C controllers and devices that comply with the USB-C specification. However, compatibility may depend on the specific implementation and the system design. It is recommended to verify compatibility through testing and validation.
Trust Checks
Expert Contribution
System Verified
Community Approved
STUSB4710QTR Overview

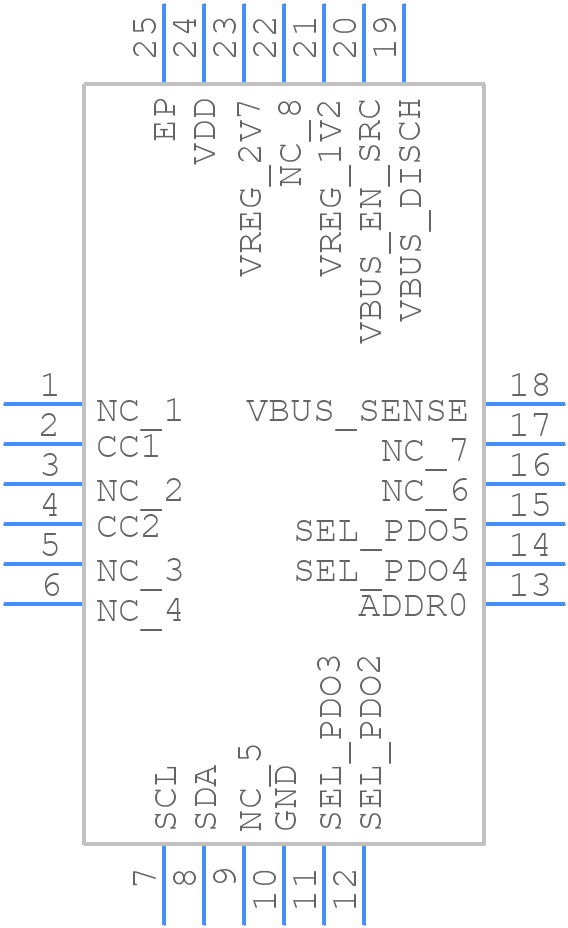

Use the download button to access the STUSB4710QTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STUSB,
or try a keyword search, such as Power Management Circuits
