STUSB4761QTR - STMicroelectronics

Description: Standalone USB PD controller with integrated CC/CV for AC/DC applications

Download STUSB4761QTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

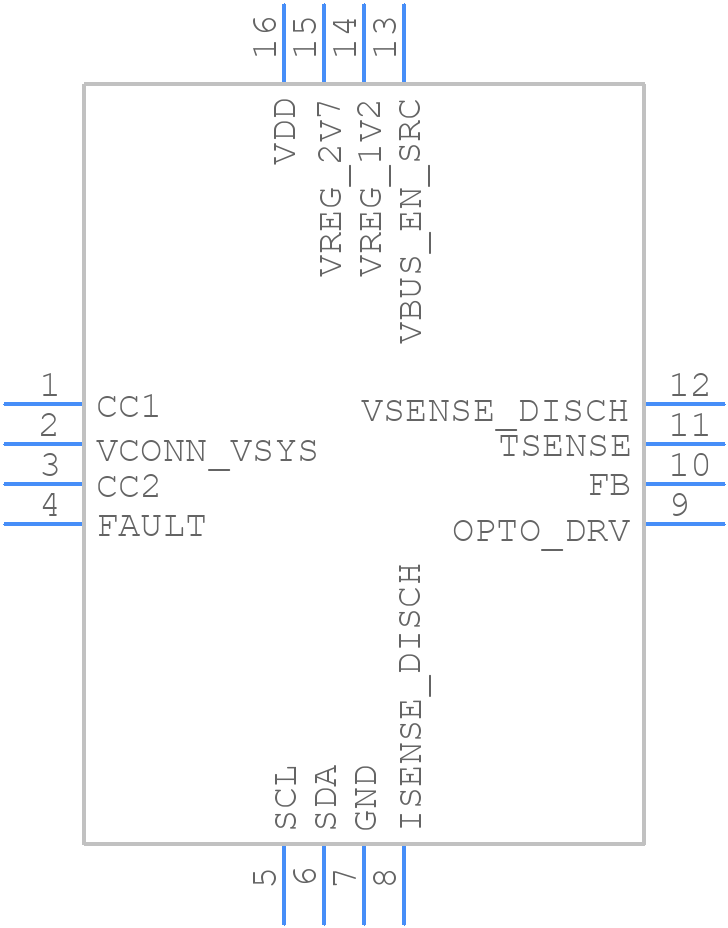

STUSB4761QTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUSB4761QTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 (3x3x0.55)
click to zoom
3D Models
STUSB4761QTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN16 (3x3x0.55)
click to zoom

STUSB4761QTR Details

  • Manufacturer Part Number:

    STUSB4761QTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    QFN-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.65 mm

  • Supply Current-Max (Isup):

    1.08 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.548V

  • Width:

    3 mm

STUSB4761QTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-speed signals away from the power planes and use a 50-ohm impedance-controlled trace for the USB lines.
  • Use a shielded USB connector, keep the USB traces away from the PCB edges, and add a common-mode filter (e.g., a ferrite bead) on the USB lines. Also, ensure proper grounding and decoupling of the device.
  • The STUSB4761QTR supports cable lengths up to 3 meters (10 feet) for USB 2.0 and 1.5 meters (5 feet) for USB 3.2 Gen 1, assuming a good quality cable with proper shielding and termination.
  • Use a 3.3V voltage regulator (e.g., LDO) to power the STUSB4761QTR. Ensure proper power sequencing and decoupling capacitors to minimize noise and voltage drops.
  • The STUSB4761QTR has a thermal pad on the bottom of the package. Ensure good thermal conductivity by using a thermal pad or thermal tape on the PCB, and consider adding a heat sink or thermal vias for high-temperature applications.
