STUW81300-1TR - STMicroelectronics

Description: Wideband RF/microwave PLL fractional/integer frequency synthesizer with integrated VCOs and LDOs

Download STUW81300-1TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

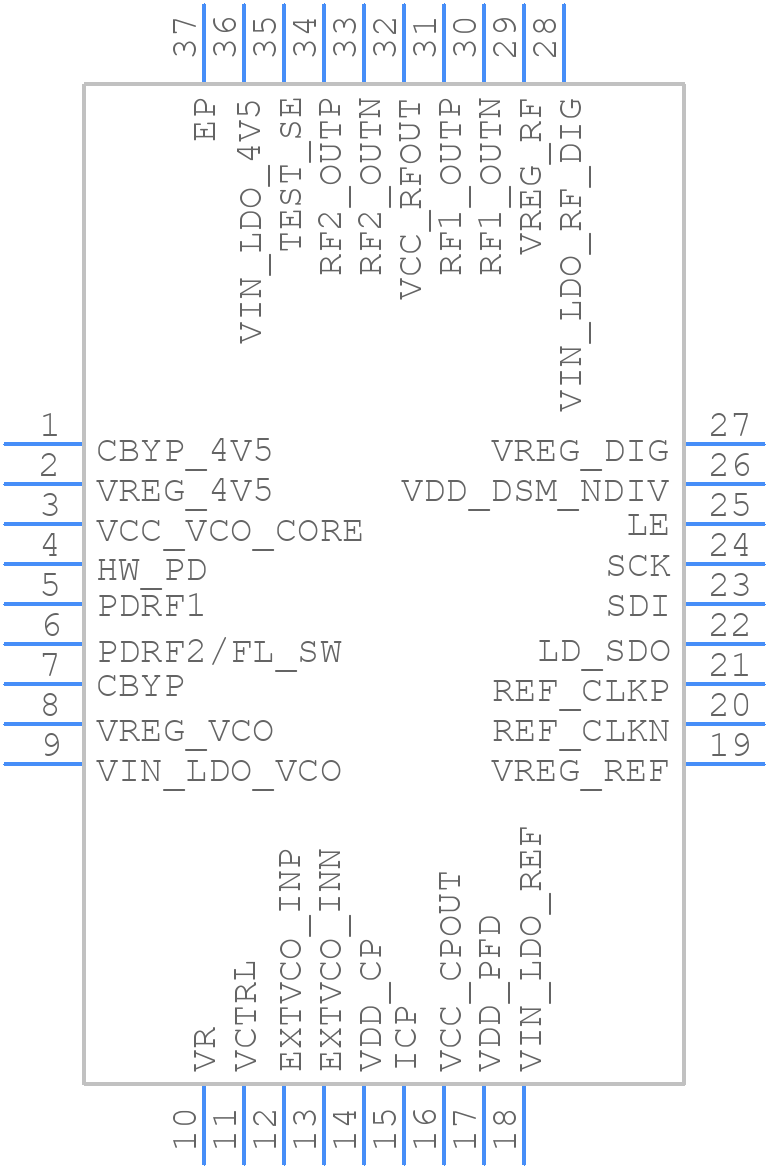

Symbol
STUW81300-1TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STUW81300-1TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN - 36 pin, 6x6 mm, 0.5 mm pitch very thin profile fine pitch quad flat package mechanical data
click to zoom
3D Models
STUW81300-1TR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN - 36 pin, 6x6 mm, 0.5 mm pitch very thin profile fine pitch quad flat package mechanical data
click to zoom

STUW81300-1TR Details

  • Manufacturer Part Number:

    STUW81300-1TR

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VFQFPN-36

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-XQCC-N36

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.4 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

STUW81300-1TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5153, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal protection mechanisms.
  • Although the datasheet specifies the recommended operating voltage range, it's essential to note that the absolute maximum rating for the input pins is 6.5V. Exceeding this voltage can cause permanent damage to the device.
  • To troubleshoot issues with the device not turning on or not functioning correctly, check the power supply voltage, ensure proper pin connections, and verify that the input voltage is within the recommended range. Also, review the application circuit and ensure that it meets the recommended operating conditions.
  • STMicroelectronics recommends using ESD protection devices, such as TVS diodes or ESD arrays, to protect the STUW81300-1TR from electrostatic discharge. The recommended ESD protection devices are listed in the datasheet or can be found in the application notes.
