STW81200T - STMicroelectronics

Description: Wideband RF PLL fractional/integer frequency synthesizer with integrated VCOs and LDOs

Download STW81200T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

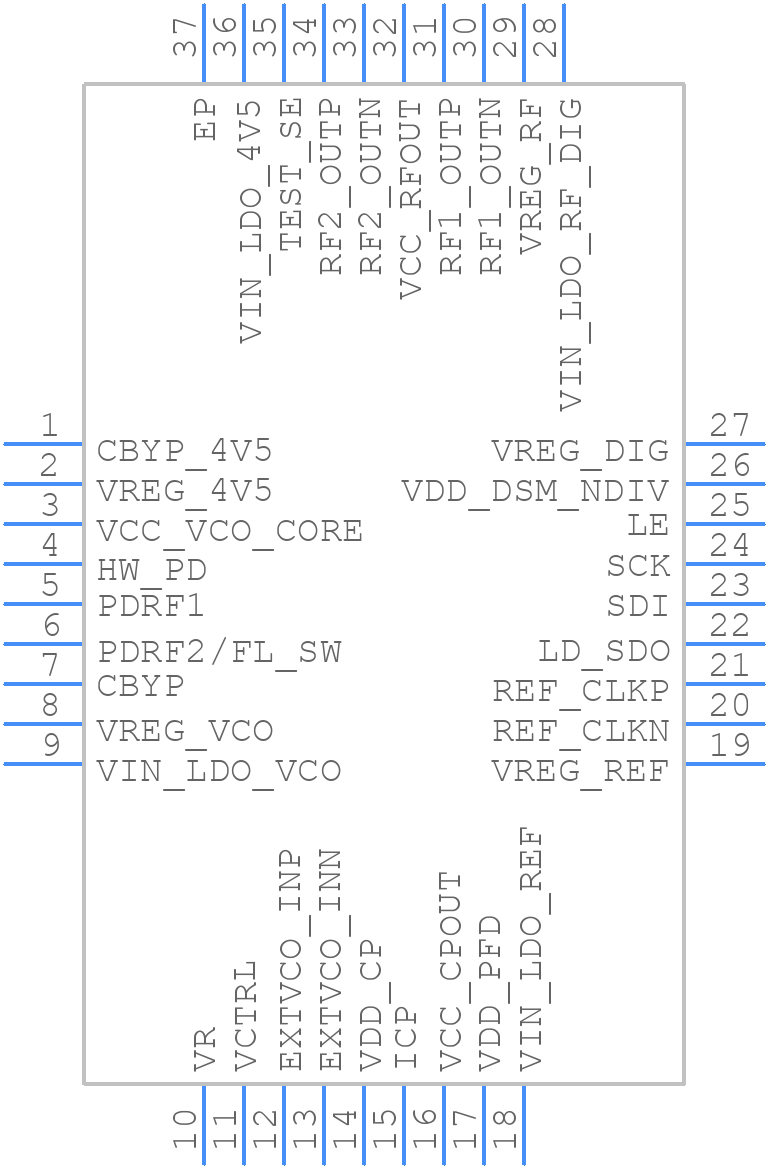

STW81200T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STW81200T - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN36 6 x 6 mm, 0.5 mm pitch
click to zoom
3D Models
STW81200T - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN36 6 x 6 mm, 0.5 mm pitch
click to zoom

STW81200T Details

  • Manufacturer Part Number:

    STW81200T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VFQFPN-36

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N36

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.7 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

STW81200T Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated thermal layer and a solid ground plane is recommended. Ensure a minimum of 2 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.
  • Use X7R or X5R ceramic capacitors with a minimum capacitance of 10uF for input and output filtering. Ensure the capacitors are placed close to the device pins.
  • Use a shielded enclosure, keep sensitive components away from the STW81200T, and use a common-mode choke or ferrite bead on the input lines. Ensure good PCB layout practices, such as separating analog and digital grounds.
  • Apply the input voltage (VIN) first, followed by the enable signal (EN). Ensure the input voltage is stable before applying the enable signal.
