STWBC-EPTR - STMicroelectronics

Description: Digital controller for wireless battery chargers transmitters for Qi 15 W applications

Download STWBC-EPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

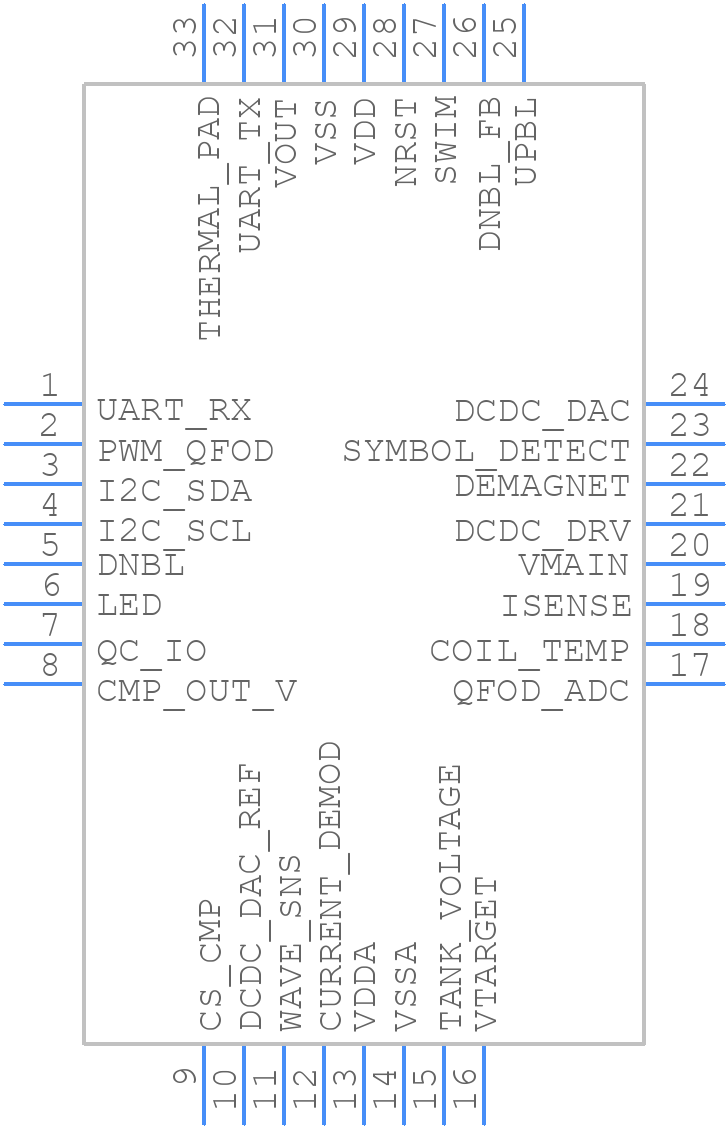

STWBC-EPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STWBC-EPTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN32
click to zoom
3D Models
STWBC-EPTR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN32
click to zoom

STWBC-EPTR Details

  • Manufacturer Part Number:

    STWBC-EPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

STWBC-EPTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the STWBC-EPTR involves keeping the high-frequency components (e.g., the coil and capacitors) close together, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable wireless power transfer, make sure the transmitter and receiver coils are properly aligned, the transmitter power is set correctly, and the receiver is properly tuned. Also, ensure that the system is designed to handle foreign object detection (FOD) and metal object detection (MOD).
  • The maximum power that can be transferred using the STWBC-EPTR depends on the specific application and the design of the transmitter and receiver coils. However, the STWBC-EPTR is designed to support up to 15W of power transfer.
  • The STWBC-EPTR has built-in FOD and MOD detection capabilities. To implement FOD and MOD, you need to connect the FOD and MOD pins to the transmitter coil and use the STWBC-EPTR's built-in detection algorithms. You can also use external sensors and algorithms to enhance the detection capabilities.
  • The STWBC-EPTR operates at a frequency of 135 kHz, which is the standard frequency for wireless power transfer applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STWBC-EPTR Overview

Use the download button to access the STWBC-EPTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STWBC, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
