STWBC-MC - STMicroelectronics

Description: Wireless Charging ICs Digital controller for wireless battery chargers transmitters for Qi multicoil applications

Download STWBC-MC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

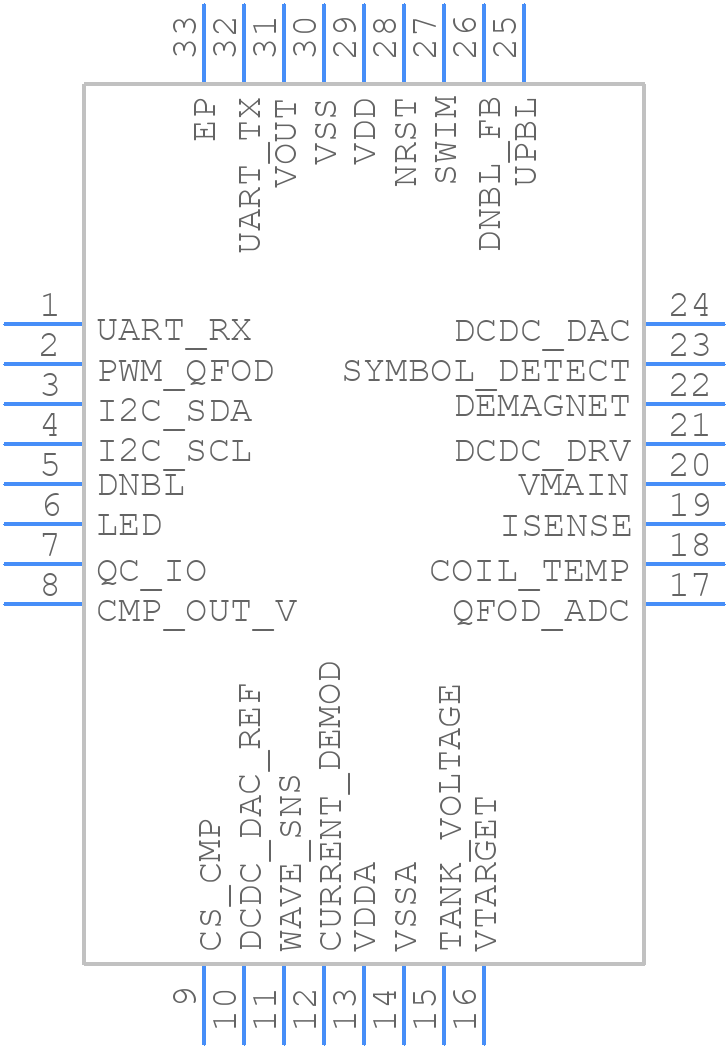

STWBC-MC - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STWBC-MC - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN32 2019
click to zoom
3D Models
STWBC-MC - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN32 2019
click to zoom

STWBC-MC Details

  • Manufacturer Part Number:

    STWBC-MC

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    VFQFPN 32 5x5x1.0

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2018-08-07

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

STWBC-MC Frequently Asked Questions (FAQs)

  • The STWBC-MC can deliver up to 15W of power, but this depends on the specific application and the components used in the design.
  • The STWBC-MC has a built-in foreign object detection (FOD) feature that can detect the presence of foreign objects, such as keys or coins, and prevent them from interfering with the wireless charging process.
  • Yes, the STWBC-MC is a highly integrated wireless power transmitter and receiver IC that can be used for both transmitter and receiver applications, making it a versatile solution for wireless charging designs.
  • The STWBC-MC operates at a frequency range of 100 kHz to 200 kHz, which is within the Qi-compliant frequency range for wireless charging.
  • Yes, the STWBC-MC supports multiple coil configurations, including single-coil, dual-coil, and triple-coil configurations, allowing for flexibility in design and optimization for specific applications.
