STWBC-WATR - STMicroelectronics

Description: Single Mode Wireless Power Transmitter/Receiver 32-Pin VFQFPN EP

Download STWBC-WATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

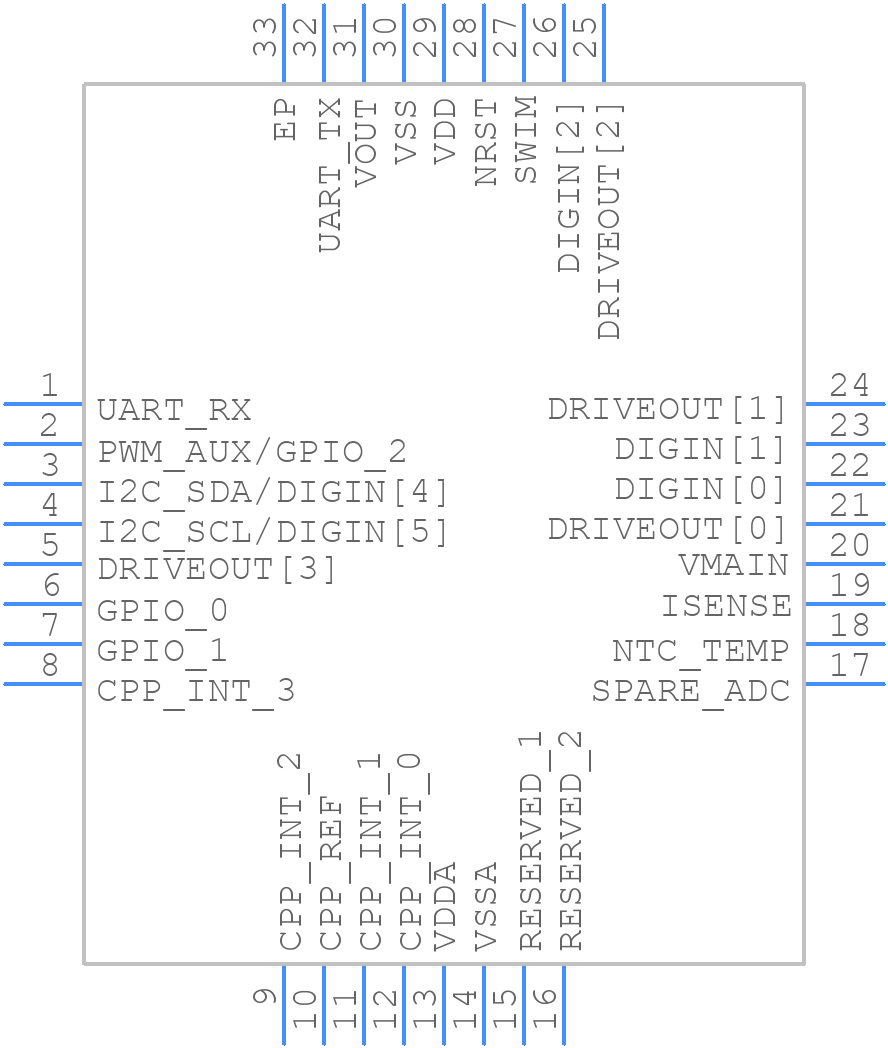

STWBC-WATR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STWBC-WATR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN32
click to zoom
3D Models
STWBC-WATR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN32
click to zoom

STWBC-WATR Details

  • Manufacturer Part Number:

    STWBC-WATR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VFQFPN-32

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

STWBC-WATR Frequently Asked Questions (FAQs)

  • The STWBC-WATR can deliver up to 15W of power, making it suitable for fast charging applications.
  • The STWBC-WATR has built-in foreign object detection (FOD) capabilities, which can detect the presence of foreign objects on the transmitter coil and prevent overheating or damage to the device.
  • Yes, the STWBC-WATR is Qi-certified, ensuring compatibility with Qi-compliant receivers and transmitters.
  • The STWBC-WATR operates at a frequency range of 100 kHz to 200 kHz, which is within the Qi specification for wireless charging.
  • The STWBC-WATR has built-in thermal management features, including over-temperature protection and thermal sensing, to prevent overheating and ensure safe operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STWBC-WATR Overview

Use the download button to access the STWBC-WATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STWBC, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
