SUCW32415BP - Cosel

Description: Cosel Isolated DC-DC Converter, Vin 18 → 36 V dc, Vout ±15V dc, I/O isolation 500V ac

Download SUCW32415BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

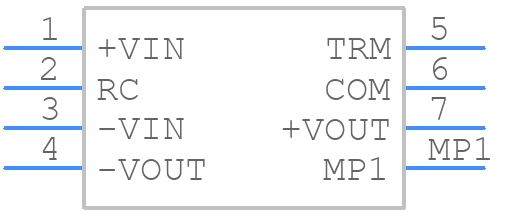

SUCW32415BP - Cosel - PCB symbol
click to zoom
PCB Footprints
SUCW32415BP - Cosel PCB footprint - Other - Other - SUCW32415BP-3
click to zoom
3D Models
SUCW32415BP - Cosel - 3D model - Other - SUCW32415BP-3
click to zoom

SUCW32415BP Details

  • Manufacturer Part Number:

    SUCW32415BP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Additional Feature:

    NEGATIVE OUTPUT VOLTAGE IS -15 V, OUTPUT PINS CAN BE CONNECTED IN SERIES TO MAKE A 30V OUTPUT

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-G7

  • Length:

    25 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Output Voltage-Max:

    15.75 V

  • Output Voltage-Min:

    14.25 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    7.5 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    YES

  • Width:

    15.5 mm

SUCW32415BP Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Yes, the SUCW32415BP is designed to withstand vibrations up to 10G peak acceleration, 10-200Hz frequency range, and 2 hours duration per axis. However, it's recommended to consult with Cosel's application engineers for specific vibration requirements.
  • Cosel recommends an output filter capacitance of ≤ 47μF to ensure stable operation. Exceeding this value may cause oscillations or instability in the output voltage.
  • The SUCW32415BP is designed to operate up to 5,000 meters (16,400 ft) above sea level. However, derating of the output power may be necessary for higher altitudes. Consult with Cosel's application engineers for specific requirements.
  • Cosel recommends a fuse rating of 5A slow-blow or 3A fast-acting to protect the module from input overcurrent conditions.
