The recommended storage condition for SUG90090E-GE3 is in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 125°C and humidity below 60%.
While SUG90090E-GE3 is suitable for high-frequency applications, its performance may degrade above 100 kHz. It's recommended to consult with a Vishay Intertechnologies representative or perform thorough testing to ensure suitability for your specific application.
To prevent electrostatic discharge (ESD) damage, handle SUG90090E-GE3 components in an ESD-protected environment, use ESD-protective packaging, and follow proper grounding procedures during assembly and installation.
The recommended soldering profile for SUG90090E-GE3 is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s. However, it's recommended to consult the Vishay Intertechnologies application note for specific soldering guidelines.
While SUG90090E-GE3 meets the requirements for automotive applications, it's essential to consult with a Vishay Intertechnologies representative to ensure compliance with specific automotive industry standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SUG90090E-GE3 Overview

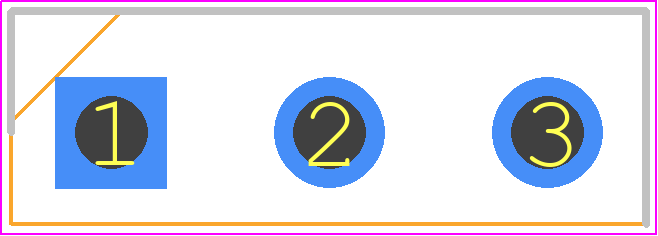

Use the download button to access the SUG90090E-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SUG90,
or try a keyword search, such as Power Field-Effect Transistors
