SUTS31205 - Cosel

Description: Cosel 3W Isolated DC-DC Converter, Vin 9 → 18 V dc, Vout 5V dc, I/O isolation 500V ac

Download SUTS31205 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

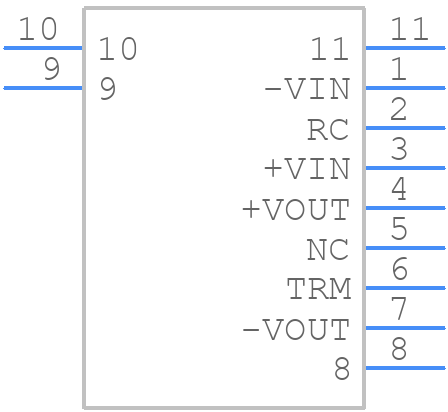

SUTS31205 - Cosel - PCB symbol
click to zoom
PCB Footprints

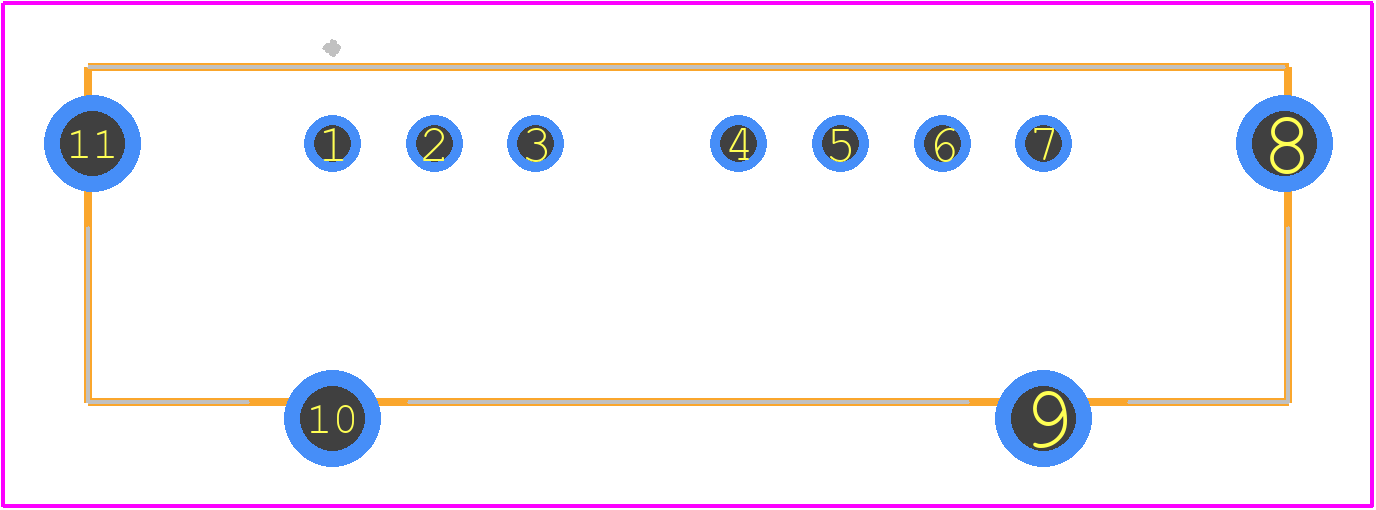

SUTS31205 - Cosel PCB footprint - Other - Other - SUTS32405-1
click to zoom
3D Models
SUTS31205 - Cosel - 3D model - Other - SUTS32405-1
click to zoom

SUTS31205 Details

  • Manufacturer Part Number:

    SUTS31205

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    3

  • Additional Feature:

    REMOTE SHUTDOWN

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, TUV, UL

  • Efficiency (Main Output):

    77%

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XSMA-T7

  • Length:

    30 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    23.9 mm

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    3 W

  • Width:

    9.15 mm

SUTS31205 Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area connected to the tab of the SUTS31205 to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
  • To ensure reliable operation in high-vibration environments, Cosel recommends securing the SUTS31205 to the PCB using screws or a suitable adhesive, and ensuring that the PCB is properly secured to the chassis or enclosure. Additionally, the use of conformal coating or potting can help to further reduce the risk of vibration-induced failures.
  • The maximum allowed capacitance for the output filter of the SUTS31205 is 100uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • Yes, the SUTS31205 can be used in a redundant configuration to achieve high availability and reliability. However, it is essential to ensure that the redundant units are properly synchronized and that the output voltages are properly isolated to prevent damage or malfunction.
  • Cosel recommends using a fuse with a rating of 5A or less to protect the SUTS31205 from input overcurrent conditions. The fuse should be located as close to the input terminals as possible to minimize the risk of damage or malfunction.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SUTS31205 Overview

Use the download button to access the SUTS31205 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SUTS3, or try a keyword search, such as Power Supply Modules
