SVR10S12 - XP POWER

Description: Non-Isolated DC/DC Converters DC-DC Switching regulater, 1A, DIP

Download SVR10S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

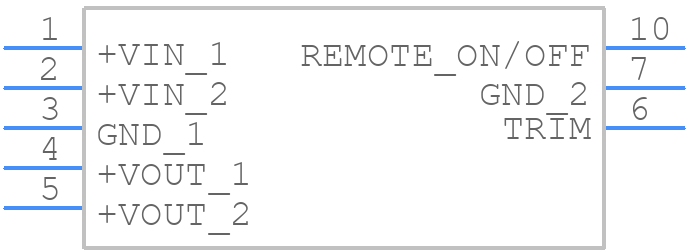

SVR10S12 - XP POWER - PCB symbol
click to zoom
PCB Footprints
SVR10S12 - XP POWER PCB footprint - Other - Other - SVR10S12-1
click to zoom
3D Models
SVR10S12 - XP POWER - 3D model - Other - SVR10S12-1
click to zoom

SVR10S12 Details

  • Manufacturer Part Number:

    SVR10S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMD-10/8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN, UKCA, UL

  • Efficiency (Main Output):

    92%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    16 V

  • JESD-30 Code:

    R-PDMA-G8

  • Length:

    15.24 mm

  • Line Regulation-Max:

    0.6%

  • Load Regulation-Max:

    0.6%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,8/10LEAD,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Protections:

    SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.026 Vrms

  • Seated Height-Max:

    8.25 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Power Output-Max:

    12 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.02 s

  • Width:

    8.5 mm
