SVRMH28/EM - VPT

Description: SPACE QUALIFIED HYBRID EMI FILTERS

Download SVRMH28/EM Model

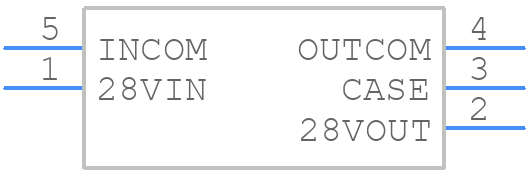

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

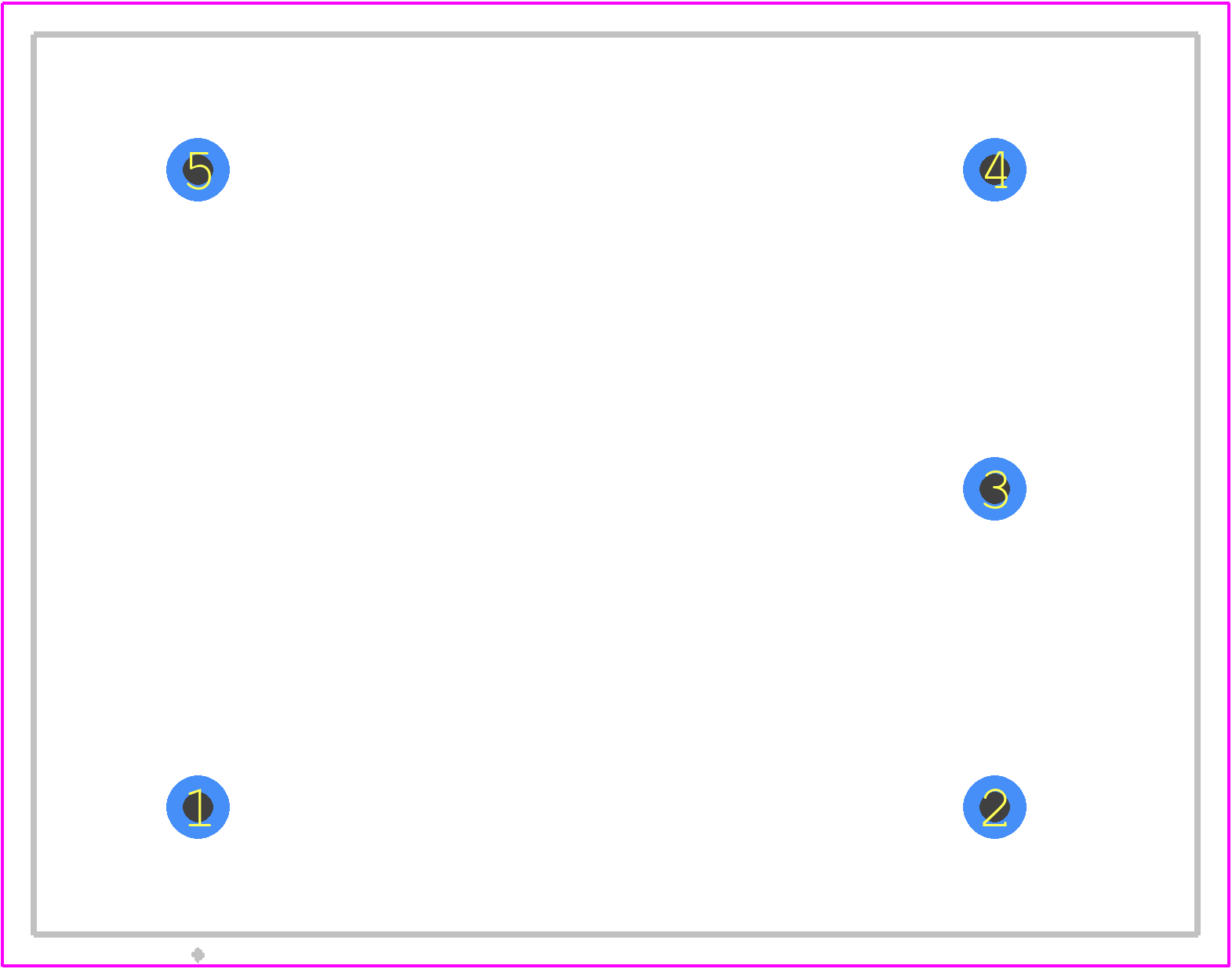

SVRMH28/EM - VPT PCB footprint - Other - Other - SVRMH28/EM-1
click to zoom
3D Models
SVRMH28/EM - VPT  - 3D model - Other - SVRMH28/EM-1
click to zoom

SVRMH28/EM Details

  • Manufacturer Part Number:

    SVRMH28/EM

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    VPT Inc

  • YTEOL:

    6

  • Additional Feature:

    MIL-STD-883 SCREENING ALSO AVAILABLE

  • Capacitance:

    30000 µF

  • DC Resistance-Max:

    0.25 Ω

  • Filter Type:

    DATA LINE FILTER MODULE

  • Height:

    8.38 mm

  • Length:

    37.08 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Rated Current:

    2 A

  • Rated Voltage:

    28 V

  • Width:

    28.7 mm
